Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

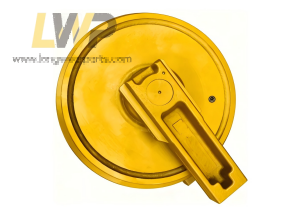

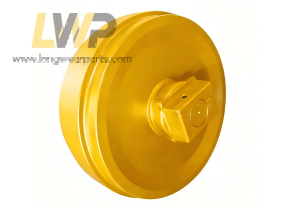

Long wear parts@ supply high quality Hitachi Front Idler/Hitachi Idler Group/ Hitachi Track Idler/ Hitachi Idler Wheel/ Hitachi Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Description
EX40,ZX40,ZX50
9163767
Hitachi Idler Group
EX60
9125766
Hitachi Idler Group
EX60-1
9068477
Hitachi Idler Group
EX60-1
9097574
Hitachi Idler Group
EX60-1
9160965
Hitachi Idler Group
EX60-2,EX603,EX75UR,EX75UR-3
9097575
Hitachi Idler Group
EX60-5,JD80,ZX70
9153734
Hitachi Idler Group
EX60-5,JD80,ZX70
9154166
Hitachi Idler Group
EX100,EX100-1,EX120,EX120-1
9068144
Hitachi Idler Group
EX100-2,3,5 /EX120-2,5/ZX110
9092973
Hitachi Idler Group
EX100-2,3,5 /EX120-2,5/ZX110
AT180421
Hitachi Idler Group
EX100-2,3,5 /EX120-2,5/ZX110
9134216
Hitachi Idler Group
EX100-2,EX120-2
9165902
Hitachi Idler Group
EX100-3
9143388
Hitachi Idler Group
EX100-3,EX100-5,EX120-3,EX120-5
9165598
Hitachi Idler Group
