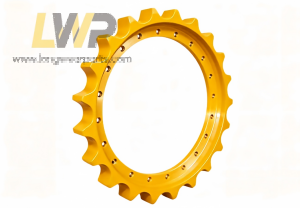

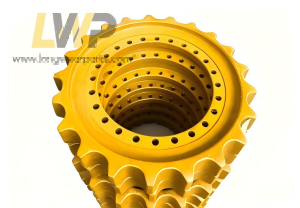

Kobelco Undercarriage Sprocket 2404N267/2404N271/2404N254 China manufacturer

Products information
1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo;
2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62;
3)Tooth Hardening Depth: 18–23mm;
4)Tensile Strength: ≥800MPa;
5)Structure Type: Single Piece/Split Rim ;
6)Pitch Tolerance:±0.1~0.5mm;
7)Package: packed in strong pallets;
8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

Product Description:

Long wear parts@ supply high quality Kobelco excavator drive sprocket, Kobelco track drive wheel, Kobelco undercarriage sprocket, Kobelco final drive sprocket, Kobelco split rim sprocket, Kobelco mini digger sprocket, Kobelco heavy mining sprocket, Kobelco crawler undercarriage replacement parts.

Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC5062 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.

If you choose us , you can:

1)  Reduce your machine downtime with ultra wear-resistant drive sprockets

2)  Smooth meshing design lowers wear of track chains and travel reducers

3)  Factory direct price without middlemen, maximize profit for your business

4Large inventory ensures short lead time for urgent orders

5)  Professional technical team provides parameter matching support anytime.

Long wear parts@ Kobelco drive sprocket/Kobelco drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.


Model Part number Description
SK25SR-2 PM51D01003P1 Kobelco Track Sprocket
SK30SR-2,SK35SR-2 PW53D01001P1 Kobelco Track Sprocket
SK40SR,SK45SR-2 PH51D01002P1 Kobelco Track Sprocket
SK55 PY51D01002P1 Kobelco Track Sprocket
SK60-5,SK60C,SK70,SK80CS 2404N267 Kobelco Track Sprocket
SK100,SK115 2404N416 Kobelco Track Sprocket
SK100,SK120-3/5,SK04-N2, SK905 6HOLES Kobelco Track Sprocket
SK100/SK04N2/SK120 2404N271 Kobelco Track Sprocket
SK100/SK04N2/SK120 2404N254 Kobelco Track Sprocket
K907B/C 2404N251 Kobelco Track Sprocket
K907-2,K907D 2404N182C2 Kobelco Track Sprocket
