Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

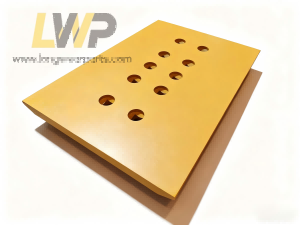

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
4T8077
4T-8077
Multi purpose dozer center
0.625 x 8.000 x 93.750
15
9V6572
9V-6572
Base Edge With Segment Holes
1.000 x 9.650 x 93.310
28
5V4670
5V-4670
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.625 x 93.500
16
6W2984
6W-2984
Base Edge With Segment Holes
1.000 x 9.600 x 94.780
28
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
New Style 2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
New Style 2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
1U0295
1U-0295
Center
1.000 x 11.000 x 40.375
3
1U0607
1U-0607
Center
1.000 x 11.000 x 41.000
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
9W3486
9W-3486
C/IMP Center NR RH
1.000 x 8.000 x 40.375
3
9W3487
9W-3487
C/IMP Center NR LH
1.000 x 8.000 x 40.375
3
9W3483
9W-3483
C/IMP Center NR LH/RH
1.000 x 8.000 x 41.000
3
9W3481
9W-3481
C/IMP End NR RH
1.000 x 10.563 x 6.250
2
9W3482
9W-3482
C/IMP End NR LH
1.000 x 10.563 x 6.250
2
4T6694
4T-6694
Center Segment
1.000 x 11.000 x 8.860
2
4T6693
4T-6693
End Segment
1.000 x 11.000 x 8.250
2
1321035
132-1035
HD Center Segment
1.375 x 11.000 x 8.860
2
1321036
132-1036
HD End Segment
1.375 x 11.000 x 8.250
2
4T6694HA
4T-6694HA
HA Center Segment
1.375 x 10.875 x 9.000
2
4T6693HA
4T-6693HA
HA End Segment
1.375 x 10.875 x 8.250
2
8K8161
8K-8161
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.000 x 96.000
18
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
1U1465
1U-1465
Center
1.000 x 11.000 x 31.000
3
1U1464
1U-1464
End
1.000 x 11.000 x 32.250
3
1321026
132-1026
HD Center
1.375 x 11.000 x 31.000
3
1321027
132-1027
HD End
1.375 x 11.000 x 32.250
3
9W3469
9W-3469
C/IMP Center NR
3
9W3470
9W-3470
C/IMP End NR RH
1.000 x 8.000 x 32.250
3
9W3471
9W-3471
C/IMP End NR LH
1.000 x 8.000 x 32.250
3
