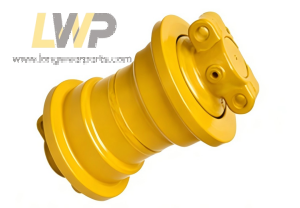

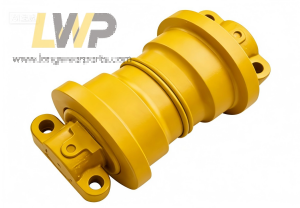

Products information 1)Track roller body material: 40Mn2/50Mn/42CrMo 2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining Model≥8-20mm); 3)Shaft material: 50Mn/40Cr/45# 4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm; 5)Bearing/Bushing material: GCr15 6)Package: packed in strong pallets 7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t
Long wear parts@ supply high quality Hyundai Track Roller/Hyundai Lower Roller/Hyundai Bottom Roller/Hyundai Rodillos Inferiores/ Hyundai Rullo Inferiore. Our Track Rollers have a high hardness level of HRC52-60. They are manufactured using a through hardening system and spraying quenching system, in compliance with the stringent ISO System.
Long wear parts@ use advanced machining centres, both horizontal and vertical, to execute processes such as machining, drilling, threading and milling. This ensures the quality and precision of each component, maximising their lifespan and minimising production costs per hour.
Additionally, they feature good bronze bushings and a deep hardened wear surface. This ensures excellent wear resistance even in the most severe working conditions.
The bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Doosan/Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.
Model
Part number
Alternative number
Description
R360LC-3~7,R420/R450LC,
R450LC-3~7,R500LC-7, R3600-3~7,
R4200/4500LC,R4500LC-3~7,
81E70015
81E7-0015
Hyundai Track Roller
R360LC-3~7,R420/R450LC,
R450LC-3~7,R500LC-7, R3600-3~7,
R4200/4500LC,R4500LC-3~7,
81E700631
81E7-00631
Hyundai Track Roller
R360LC-3~7,R420/R450LC,
R450LC-3~7,R500LC-7, R3600-3~7,
R4200/4500LC,R4500LC-3~7,
UF210E0EG
UF210E0E-G
Hyundai Track Roller
R360LC-3~7,R420/R450LC,
R450LC-3~7,R500LC-7, R3600-3~7,
R4200/4500LC,R4500LC-3~7,
81E700632
81E7-00632
Hyundai Track Roller
R380LC-9, R480LC
81E700633
81E7-00633
Hyundai Track Roller
R380, HX380.
81NB11051
81NB-11051
Hyundai Track Roller
R480. HX520.
81QB11010
81QB-11010
Hyundai Track Roller
H70/H70LGP
85D170020(SF)
85D1-70020(SF)
Hyundai Track Roller
H70/H70LGP
85D170030(DF)
85D1-70030(DF)
Hyundai Track Roller
H80/H80LGP
85D270020(SF)
85D2-70020(SF)
Hyundai Track Roller
H80/H80LGP
85D270030(DF)
85D2-70030(DF)
Hyundai Track Roller
