Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

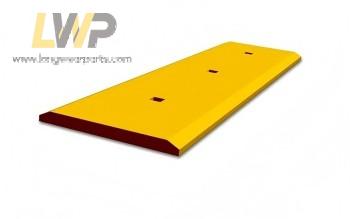

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
4T6626
4T-6626
Drop Center
0.875 x 13.000 x 55.500
16
4T2882
4T-2882
Level Cut Center
0.750 x 10.000 x 55.500
16
4T2883
4T-2883
End
0.750 x 10.000 x 20.250
6
4T8807
4T-8807
Wider Level Cut End RH
0.875 x 12.000 x 20.125
6
4T8808
4T-8808
Wider Level Cut End LH
0.875 x 12.000 x 20.125
6
D22506
D-22506
Straight Blade Support
0.750 x 6.500 x 96.750
28
4T6627
4T-6627
Drop Center
0.875 x 13.000 x 54.250
18
4T2941
4T-2941
Level Cut Center
0.750 x 10.000 x 54.250
9
4T2942
4T-2942
End
0.750 x 10.000 x 23.500
4
4T2947
4T-2947
Optional One Piece Edge
0.750 x 10.000 x 101.375
17
4T6622
4T-6622
Center
0.875 x 13.000 x 59.500
17
4T6624
4T-6624
End
0.875 x 13.000 x 24.500
7
4T8805
4T-8805
Wider Level Cut End RH
1.000 x 15.500 x 24.250
7
4T8806
4T-8806
Wider Level Cut End LH
1.000 x 15.500 x 24.250
7
4T6565
4T-6565
Drop Center
0.875 x 16.000 x 54.250
18
4T6617
4T-6617
Level Cut Center
0.875 x 13.000 x 54.250
9
4T6612
4T-6612
End
0.875 x 13.000 x 29.500
5
4T2900
4T-2900
HD Drop Center
1.125 x 16.000 x 54.250
18
4T6380
4T-6380
HD End
1.125 x 13.000 x 29.500
5

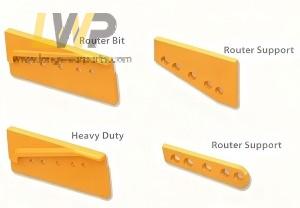

8F7232
8F-7232
Router Bit
0.750 x 8.000 x 16.000
5
6F3319
6F-3319
RH Router Bit Support
1.000 x 8.750 x 22.875
5
6F3320
6F-3320
LH Router Bit Support
1.000 x 8.750 x 22.875
5
4T2887
4T-2887
Drop Center
0.875 x 16.000 x 60.250
20
4T6620
4T-6620
Level Cut Center
0.875 x 13.000 x 60.250
10
4T2895
4T-2895
HD Drop Center
1.125 x 16.000 x 60.250
20
4T6620X11/8
4T-6620X11/8
1.125 x 13.000 x 60.250
10
1J3599FAB
1J-3599FAB
RH/LH Router Bit
0.750 x 8.750 x 21.125
5
1J1299
1J-1299
RH Router Bit Support
1.250 x 10.000 x 22.750
5
1J1300
1J-1300
LH Router Bit Support
1.250 x 10.000 x 22.750
5
2T1969
2T-1969
Drop Center Blade Support
1.000 x 13.500 x 119.250
30
D23500
D-23500
Straight Blade Support
1.120 x 9.500 x 120.000
20
4T6567
4T-6567
Drop Center
0.875 x 16.000 x 48.250
16
4T6621
4T-6621
Level Cut Center
0.875 x 13.000 x 48.250
8
1955131
195-5131
Wider Level Cut End
0.875 x 16.000 x 29.500
10
4T2891
4T-2891
HD Drop Center
1.125 x 16.000 x 48.250
16
4T2894
4T-2894
HD Wider Level Cut End
1.125 x 16.000 x 29.500
10
D15220
D-15220
Straight Blade Support
1.000 x 9.000 x 110.000
18
