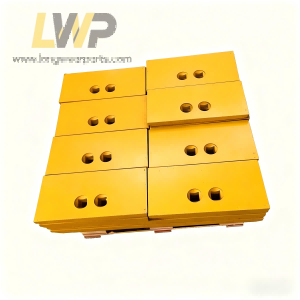

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
6W2986
6W-2986
Base Edge With Segment Holes
1.000 x 9.600 x 95.000
30
5V7277
5V-7277
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.600 x 95.000
18
5V7396FAB
5V-7396FAB
Corner 1 hole RH
1.000 x 8.500 x 8.000
1
5V7395FAB
5V-7395FAB
Corner 1 hole LH
1.000 x 8.500 x 8.000
1
8E5303
8E-5303
Corner 2 hole LH
2.000 x 8.219 x 8.966
2
8E5302
8E-5302
Corner 2 hole RH
2.000 x 8.219 x 8.966
2
2530062
253-0062
New Style 2 Hole Corner Protector RH
1.125 x 8.188 x 13.375
2
2530063
253-0063
New Style 2 Hole Corner Protector LH
1.125 x 8.188 x 13.375
2
1U2414
1U-2414
Center
1.182 x 14.170 x 41.125
3
1U2412
1U-2412
Center
1.180 x 14.170 x 45.188
3
4T8101
4T-8101
End
1.250 x 19.625 x 6.688
3
1321030
132-1030
HD Center
1.375 x 14.250 x 41.125
3
1321031
132-1031
HD Center
1.375 x 14.250 x 45.188
3
1321033
132-1033
HD End
1.375 x 19.625 x 6.688
3
4T6694
4T-6694
Center Segment
1.000 x 11.000 x 8.860
2
4T6693
4T-6693
End Segment
1.000 x 11.000 x 8.250
2
4T6695
4T-6695
End Segment
1.000 x 11.000 x 10.437
2
1321037
132-1037
HD End Segment
1.375 x 11.000 x 10.438
2
1321035
132-1035
HD Center Segment
1.375 x 11.000 x 8.860
2
1321036
132-1036
HD End Segment
1.375 x 11.000 x 8.250
2
4T6695HA
4T-6695HA
HA Segment (Cast)
1.375 x 10.875 x 10.438
2
4T6694HA
4T-6694HA
HA Segment (Cast)
1.375 x 10.875 x 9.000
2
4T6693HA
4T-6693HA
HA Segment (Cast)
1.375 x 10.875 x 8.250
2
8K8161
8K-8161
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.000 x 96.000
18
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
