Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

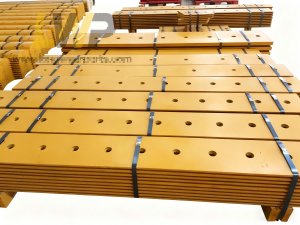

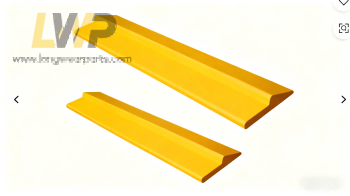

Our aftermarket full sets of Caterpillar 963 Cutting Edge and End Bits replacement are heavy-duty GET wear components engineered specifically for Caterpillar 963 track loader. As a powerful track-type loader, Cat 963 delivers high traction and strong digging force, widely deployed in quarry operation, rock excavation, land clearing, soil stripping, stockpile handling and heavy earthmoving projects.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Welcome to contact us for more detailed information.Normal production lead time: 25–35 working days upon receipt of deposit. The lead time depends on order quantity and production schedule. We will confirm the exact delivery schedule and notify you once production starts. Rush orders are available upon negotiation.
Part number
Alternative number
Description
Dimension
Hole
4V4958
4V-4958
Base Edge For Bolt-on Edges
1.250 x 11.000 x 89.563
18
5V1783
5V-1783
Corner 1 hole RH
1.000 x 8.000 x 8.500
1
5V1784
5V-1784
Corner 1 hole LH
1.000 x 8.000 x 8.500
1
8E5300
8E-5300
Corner 2 hole RH
2.000 x 7.996 x 9.276
2
8E5301
8E-5301
Corner 2 hole LH
2.000 x 7.996 x 9.276
2
6W2453
6W-2453
Corner no holes RH
6W2454
6W-2454
Corner no holes LH
6W2979
6W-2979
Base Edge With Segment
1.250 x 11.000 x 89.563
30
4T8081
4T-8081
Multi purpose dozer center
0.625 x 8.000 x 89.000
14
4T8084
4T-8084
Center
0.625 x 8.000 x 66.500
11
4T8085
4T-8085
End
0.625 x 8.000 x 15.000
3
8E5793
8E-5793
Center
1.250 x 14.250 x 41.750
3
3G6395
3G-6395
End
1.375 x 20.252 x 8.000
3
2085343
208-5343
C/IMP End REV
1.375 x 20.250 x 8.000
3
4T6697
4T-6697
Center Segment
1.180 x 14.170 x 8.250
2
4T6696
4T-6696
End Segment
1.180 x 14.170 x 7.500
2
1406865
140-6865
HD Center Segment
1.375 x 14.170 x 7.500
2
1406866
140-6866
HD End Segment
1.375 x 14.170 x 8.250
2
8Y9404
8Y-9404
Base Edge Without Holes
1.250 x 11.100 x 101.700
1735426
173-5426
2 Hole Corner Protector RH
1.250 x 8.750 x 13.000
2
1735427
173-5427
2 Hole Corner Protector LH
1.250 x 8.750 x 13.000
2
8E5320
8E-5320
Corner 2 hole RH
2
8E5321
8E-5321
Corner 2 hole LH
2
