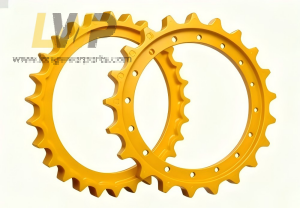

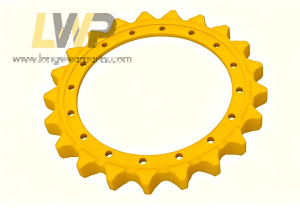

Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.
Long wear parts@ supply drive sprocket is the core power transmission component of crawler undercarriage system, mounted on final drive reducer to drive track chain for machine traveling. Fully compatible with all mainstream brand excavators from 1T mini digger to 90T mining excavator.
Our Core Advantages:
1) Premium Alloy Raw Material Adopt 35Mn2 / 40MnB / 42CrMo high-strength forged alloy steel, high tensile & impact toughness, effectively avoid tooth crack & break under heavy load, rocky & muddy harsh working sites.
2）Dual Heat Treatment Craft Overall quenching & tempering + tooth surface medium-frequency induction hardening. Surface hardness HRC 50–62, hardening depth 8–12mm. Balanced hard surface & tough core, outstanding abrasion resistance, service life 30% longer than ordinary sprockets.
3）1:1 OEM Precision Machining CNC full machining for tooth profile, pitch circle, inner spline, bolt hole circle. Strictly copy OEM drawing parameters, perfect meshing with original track chain, no track slipping, no abnormal vibration & noise, protect final drive from overload damage.
4) Two Structural Options Available
One-piece solid sprocket: Low cost, widely used for mini & medium excavators;
Split segmented rim sprocket: Only replace worn tooth ring, save maintenance cost for large mining machines;
5）Full Model Coverage & Customization Complete part numbers for CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr. Support ODM/OEM: Custom size, tooth count, painting color, logo marking per drawings & samples.
Welcome to ask Long wear parts@ excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Model
Part number
Alternative No.
Description
E70, E70B
0962144
096-2144
Caterpillar Track Sprocket Rim
E70, E70B
1R5440
1R-5440
Caterpillar Track Sprocket Rim
E200B
0964327
096-4327
Caterpillar Track Sprocket Rim
E110B，E120B，E311，E312，E313，E314
0990219
099-0219
Caterpillar Track Sprocket Rim
E110B，E120B，E311，E312，E313，E314
4I7472
4I-7472
Caterpillar Track Sprocket Rim
E110B，E120B，E311，E312，E313，E314
1426825
142-6825
Caterpillar Track Sprocket Rim
E110B，E120B，E311，E312，E313，E314
4I9843
4I-9843
Caterpillar Track Sprocket Rim
E110B，E120B，E311，E312，E313，E314
0995350
099-5350
Caterpillar Track Sprocket Rim
120H, 135H, 135H NA
1021689
102-1689
Caterpillar Track Sprocket Rim
311,312,312B,315,315B,315B L,317,317B LN,318B
1028134
102-8134
Caterpillar Track Sprocket Rim
E345，E345B
1243296
124-3296
Caterpillar Track Sprocket Rim
345B II, 345C, 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L
1419655
141-9655
Caterpillar Track Sprocket Rim
E375
8E4686
8E-4686
Caterpillar Track Sprocket Rim
365B II, 365C, 365C L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B
2011704
201-1704
Caterpillar Track Sprocket Rim
