Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
5G6133
5G-6133
Base Edge With Segment Holes
0.750 x 7.500 x 84.660
26
5G8342
5G-8342
Base Edge With Segment Holes
0.750 x 7.500 x 93.100
28
5G3085
5G-3085
Base Edge For Bolt-on Edges or Teeth
0.750 x 7.500 x 84.660
14
6S6500
6S-6500
Base Edge For Bolt-on Edges or Teeth
0.750 x 7.500 x 84.660
14
5G2807
5G-2807
Corner 1 hole RH
0.750 x 5.375 x 7.125
1
5G2806
5G-2806
Corner 1 hole LH
0.750 x 5.375 x 7.125
1
4T2920
4T-2920

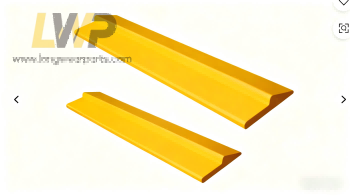

Center
0.750 x 10.000 x 38.000
3
4T2918
4T-2918
End
0.750 x 10.000 x 23.250
2
4T8796
4T-8796
Center
0.750 x 10.000 x 48.875
3
4T2913
4T-2913
Center
0.750 x 10.000 x 51.500
3
9W8694
9W-8694
Center
0.750 x 10.000 x 56.000
3
9W8620
9W-8620
Center
0.750 x 10.000 x 60.000
4
4T2914
4T-2914
End
0.750 x 10.000 x 17.000
2
1957137
195-7137
HD Center
1.000 x 10.000 x 47.120
4
1957134
195-7134
HD Intermediate End RH
1.000 x 10.000 x 35.678
3
1957133
195-7133
HD Intermediate End LH
1.000 x 10.000 x 50.138
4
5G8763
5G-8763
Base Edge With Segment Holes
0.750 x 7.500 x 89.180
24
1957140
195-7140
HD Intermediate End RH
1.000 x 10.000 x 37.406
3
1957139
195-7139
HD Intermediate End LH
1.000 x 10.000 x 52.426
4
1282872
128-2872
Center Segment
0.750 x 8.000 x 12.750
2
1282873
128-2873
End Segment
0.750 x 8.000 x 10.375
2
9W9640
9W-9640
Wider Segment
0.750 x 10.000 x 12.750
2
7T8935
7T-8935
Wider Segment
0.750 x 10.000 x 10.375
2
5G2809
5G-2809
Base Edge For Bolt-on Edges or Teeth
0.750 x 7.500 x 81.875
14
1957132
195-7132
HD Intermediate End RH
1.000 x 10.000 x 34.626
3
1957131
195-7131
HD Intermediate End LH
1.000 x 10.000 x 48.376
4
6S4738
6S-4738
Multi purpose dozer center
0.625 x 6.000 x 82.000
