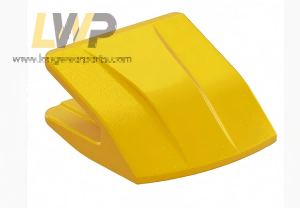

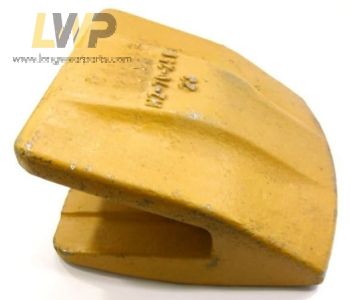

Weld-on Caterpillar Lip Shroud SC-50-150-23/SC-70-250-23/SC-90-360-30

Products information
1) Material: Low alloy steel
2) Surface: Standard yellow or as your request
3) Hardness: 480-530 HBW
4) Impact Strength: ≥22J (at 25°C)
5) Package: packed in plywood cases
6) Application :used for protecting the bucket from wear and tear.

Our aftermarket replacement Caterpillar Weld-on Lip Shrouds/lip wear protectors are welded sacrificial wear protection designed for Caterpillar excavator and wheel loader bucket cutting edges. Installed and welded between bucket adapters, they fill the vulnerable gap zones on the bucket lip that suffer the most sliding abrasion, material scouring, and gravel friction during daily digging and loading cycles.
Unlike bolt-on mechanical shrouds, our Caterpillar weld-on lip shrouds feature a one-piece solid cast structure with enlarged welding base, delivering ultra-stable protection for high-frequency construction and mining operations. They effectively eliminate lip scalloping, grooving, edge thinning and premature wear-through between tooth positions.

Caterpillar Center lip shroud SC-50-150-23º suit bevel bucket edge at 50mm ,the edge slope is 23 degree;

Caterpillar Corner lip shroud SC-50-150-23ºL suit bevel bucket edge at 50mm ,the edge slope is 23 degree;

Caterpillar Corner lip shroud SC-50-150-23ºR suit bevel bucket edge at 50mm ,the edge slope is 23 degree;

Caterpillar Center lip shroud SC-50-150-30º suit bevel bucket edge at 50mm ,the edge slope is 30 degree;

Caterpillar Center lip shroud SC-50-150-34º suit bevel bucket edge at 50mm ,the edge slope is 34 degree;

Caterpillar Center lip shroud SC-70-250-23º suit bevel bucket edge at 70mm ,the edge slope is 23 degree;

Caterpillar Corner lip shroud SC-70-250-23L suit bevel bucket edge at 70mm ,the edge slope is 23 degree;

Caterpillar Corner lip shroud SC-70-250-23R suit bevel bucket edge at 70mm ,the edge slope is 23 degree;

Caterpillar Center lip shroud SC-70-250-30º suit bevel bucket edge at 70mm ,the edge slope is 30 degree;

Caterpillar Center lip shroud SC-90-360-30º suit bevel bucket edge at 90mm ,the edge slope is 30 degree;

Caterpillar Center lip shroud SC-90-360-35º suit bevel bucket edge at 90mm ,the edge slope is 35 degree;

Caterpillar Center lip shroud HS-90-360-30º suit bevel bucket edge at 90mm ,the edge slope is 30 degree;

Caterpillar Center lip shroud HS-120-320-30º suit bevel bucket edge at 120mm ,the edge slope is 30 degree;

Our Caterpillar Wear parts include Half Arrow/Upper Wear Plate/Top Cover/Segment/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on.Welcome to contact us for more detailed information !

Part number	Alternative number	Description
SC-50-150-23º	SC-50-150-23	Weld-on Caterpillar Lip Shroud
SC-50-150-23ºL	SC-50-150-23L	Weld-on Caterpillar Lip Shroud
SC-50-150-23ºR	SC-50-150-23R	Weld-on Caterpillar Lip Shroud
SC-50-150-30º	SC-50-150-30	Weld-on Caterpillar Lip Shroud
SC-50-150-34º	SC-50-150-34	Weld-on Caterpillar Lip Shroud
SC-70-250-23º	SC-70-250-23	Weld-on Caterpillar Lip Shroud
SC-70-250-23L	SC-70-250-23L	Weld-on Caterpillar Lip Shroud
SC-70-250-23R	SC-70-250-23R	Weld-on Caterpillar Lip Shroud
SC-70-250-30º	SC-70-250-30	Weld-on Caterpillar Lip Shroud
SC-90-360-30º	SC-90-360-30	Weld-on Caterpillar Lip Shroud
SC-90-360-35º	SC-90-360-35	Weld-on Caterpillar Lip Shroud
HS-90-360-30º	HS-90-360-30	Weld-on Caterpillar Lip Shroud
HS-120-320-30º	HS-120-320-30	Weld-on Caterpillar Lip Shroud
