Products information 1) Material: Low alloy steel 2) Surface: Standard yellow or as your request 3) Hardness: 480-520 HBW 4) Impact Strength: ≥18J (at 25°C) 5) Package: packed in plywood cases 6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to efficiently dig, trench, and break hard ground.
Long wear parts@ supply high quality Caterpillar K series GET Parts & Caterpillar K series Spike Tooth/Caterpillar K series Tiger Tooth/Caterpillar K series Penetration Tooth .Our Caterpillar Bucket Teeth are designed for improved performance and wear life and are the ideal choice for all operators looking for quality and value. Caterpillar Penetration Tip 220-9102 can use bucket adapter 223-8104, the locking pin is 220-9090 ;We can supply you various bucket teeth for full series , include Caterpillar J-series , K-series , A-series and so on.
Caterpillar K series spike tooth is high‑performance GET wear part designed for Caterpillar K‑system bucket adapters. Caterpillar Penetration Tip 220-9092 can use bucket adapter 220-9094, the locking pin is 220-9090 ; It features slender sharp spike‑style tip, concentrating digging force to deliver superior penetration for heavily compacted soil, hard clay, frozen ground and weathered soft rock.Caterpillar Penetration Tip 232-0172 can use bucket adapter 238-3174, the locking pin is 232-0170 ;

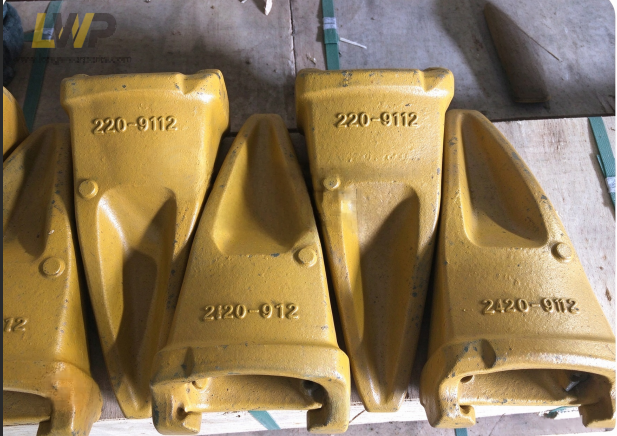

Our aftermarket Caterpillar spike teeth/tiger teeth/penetration teeth are manufactured strictly according to original CAT dimension standards, ensuring perfect fit with K‑series adapters and locking pins. Caterpillar Penetration Tip 220-9112 can use bucket adapter 232-2110, the locking pin is 286-2110 ;Widely adopted in trenching, hard ground breaking and heavy earthmoving projects. Mainly compatible with CAT excavators equipped with K‑system adapters, such as CAT320, CAT325, CAT330, CAT336,CAT345, covering K25, K30, K35, K40 and other common sizes. Not recommended for heavy abrasive gravel mining conditions. Support wholesale and OEM customization.Caterpillar Penetration Tip 220-9132 can use bucket adapter 232-0134, the locking pin is 220-9130 ;
Because of wear resistance and cost performance, our Caterpillar K series bucket teeth sell well in global aftermarket markets ,helping clients reduce equipment maintenance costs. Caterpillar Penetration Tip 220-9082 can use bucket adapter 220-9084, the locking pin is 220-9090 ; Mixed loading is available for different models in one container, customers can configure hot-selling styles freely to enrich their product inventory.Caterpillar Penetration Tip 229-7152 can use bucket adapter 232-2150, the locking pin is 233-7150 ;
Thanks you for your interest in our products. To assist you more efficiently , could you please advise which specific products you are considering and what kind of information you would like us to provide ?
Model
Part number
Alternative number
Description
K80
4755469
475-5469
Spike Tooth/Tiger Tooth/Penetration Tooth
K80
4755471
475-5471
Spike Tooth/Tiger Tooth/Penetration Tooth
K90
4755481
475-5481
Spike Tooth/Tiger Tooth/Penetration Tooth
K90
4755483
475-5483
Spike Tooth/Tiger Tooth/Penetration Tooth
K100
4755493
475-5493
Spike Tooth/Tiger Tooth/Penetration Tooth
K100
4755495
475-5495
Spike Tooth/Tiger Tooth/Penetration Tooth
K110
2862113
286-2113
Spike Tooth/Tiger Tooth/Penetration Tooth
K110
4679822
467-9822
Spike Tooth/Tiger Tooth/Penetration Tooth
K110
4707972
470-7972
Spike Tooth/Tiger Tooth/Penetration Tooth
K130
4707975
470-7975
Spike Tooth/Tiger Tooth/Penetration Tooth
K130
4707976
470-7976
Spike Tooth/Tiger Tooth/Penetration Tooth
K150
4707982
470-7982
Spike Tooth/Tiger Tooth/Penetration Tooth
K150
4707983
470-7983
Spike Tooth/Tiger Tooth/Penetration Tooth
K170
2320177
232-0177
Spike Tooth/Tiger Tooth/Penetration Tooth
