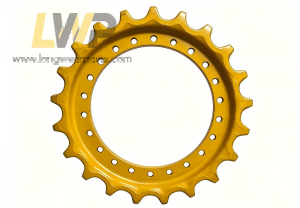

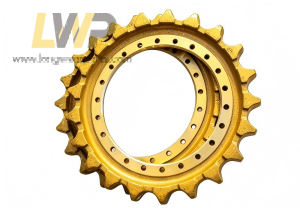

Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.
Long wear parts@ supply high quality Volvo excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC50–62 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.
If you choose us , you can:
1) Reduce your machine downtime with ultra wear-resistant drive sprockets
2) Smooth meshing design lowers wear of track chains and travel reducers
3) Factory direct price without middlemen, maximize profit for your business
4) Large inventory ensures short lead time for urgent orders
5) Professional technical team provides parameter matching support anytime.
Long wear parts@ drive sprocket/drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.
Model
Part number
Alternative No.
Description
14532385
14532385
Volvo Drive Sprocket
EC160
14370177
14370177
Volvo Drive Sprocket
EC200
14215468
14215468
Volvo Drive Sprocket
14532385
14532385
Volvo Drive Sprocket
14532383
14532383
Volvo Drive Sprocket
108103710
1081-03710
Volvo Drive Sprocket
EC230B
14260868
14260868
Volvo Drive Sprocket
EC240,SE240,SE235,MX255
118100380
1181-00380
Volvo Track Sprocket
EC240,SE240,SE235,MX255
P14520215
P14520215
Volvo Track Sprocket
EC240,SE240,SE235,MX255
14532401
14532401
Volvo Track Sprocket
SE280, MX292,MX10
108103900
1081-03900
Volvo Track Sprocket
SE280, MX292,MX10
108100020
1081-00020
Volvo Track Sprocket
MX10-2
108101970
1081-01970
Volvo Track Sprocket
EC290, MX295
118100680
1181-00680
Volvo Track Sprocket
