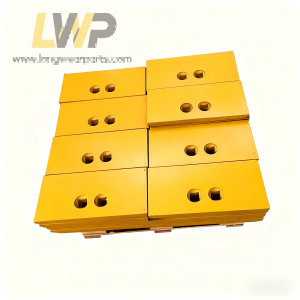

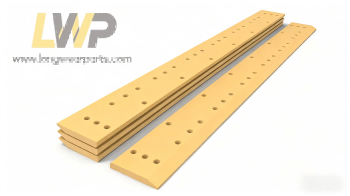

Komatsu Loader WA200 cutting edge 418-70-12121/418-815-1120/418-815-1110

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Komatsu WA200 Wheel Loader Cutting Edge & End Bits replacement are bolt-on GET wear parts specially designed for WA200 wheel loader buckets including WA200-5, WA200-6, WA200-8.The Komatsu WA200 loaders are widely used in earthmoving, aggregate stockpile loading, rock handling, municipal road construction, construction waste removal and auxiliary mine loading.

Our aftermarket Komatsu Loader cutting edges can supply various bevel design, including double bevel edge,single bevel edge and square edge.The bevel angle determines the cutting edge's penetration capability and wear life.A sharper edge penetrates more easily but also wears down faster,end users should select based on "material density + abrasiveness."

To ensure stable quality,our factory execute strict quality inspection during our entire process :

1. Material Test: use spectrometer inspection to verify chemical composition , ensure alloy elements like carbon, chromium and manganese meet standard.

2. Hardness Test: adopt random Rockwell hardness test,ensure uniform hardness for cutting edge and end bits and working surface reaches required hardness while maintaining proper toughness to avoid brittle fracture.

3. Dimension Inspection: we will check overall length, thickness, bolt hole pitch and bevel angle, and control tolerance within industrial standard.

4. Visual & Magnetic Particle Inspection: no cracks, porosity or laminations. No chipping on cutting edge and no burrs around bolt holes.

5. Sampling Impact Test: our technician will simulate working impact to verify anti-breakage performance.

Welcome to contact us for more details ! We supply high quality replacement cutting edge and end bits for Komatsu WA200 wheel loader. Our GET parts pass strict hardness and dimension inspection. Could you kindly tell us your OEM number, working site condition and material option? Also advise if you need matching high strength bolts. We will prepare formal quotation with lead time and packing details for you soon.

Model	Part number	Alternative number	Description
WA200	418-70-12121	4187012121	Base Edge
WA200	418-70-12360	4187012360	Corner Base Edge
WA200	418-70-12350	4187012350	Corner Base Edge
WA200	418-70-12151	4187012151	Corner Base Edge
WA200	418-70-12161	4187012161	Corner Base Edge
WA200	418-815-1120	4188151120	Edges (Bolt-on)
WA200	418-815-1110	4188151110	Edges (Bolt-on)
WA200	418-904-1120	4189041120	Bolt on center edge
WA200	418-904-1130	4189041130	Bolt on end edge
WA200	417-815-1210	4178151210	Bolt on center edge
WA200	417-815-1220	4178151220	Bolt on end edge
WA200	418-815-A120	418815A120	Bolt on center edge
WA200	418-815-A130	418815A130	Bolt on end edge
WA200	417-70-32120	4177032120	Bolt-on edge
WA200	417-815-3210	4178153210	Bolt on center edge
WA200	417-815-1220	4178151220	Bolt on end edge
WA200	418-823-1310	4188231310	Dozer Edge
WA200	418-823-1320	4188231320	Dozer Edge
