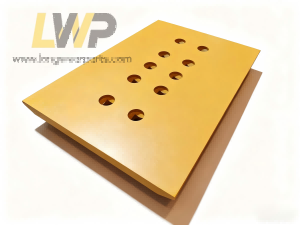

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

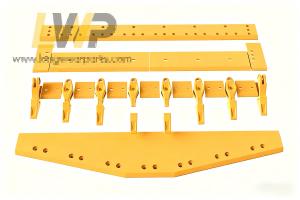

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1099123
109-9123
Center
1.375 x 16.000 x 25.000
5
1099122
109-9122
Center RH
1.375 x 16.000 x 36.380
6
1099121
109-9121
End RH
1.375 x 16.000 x 30.000
5
1099124
109-9124
Center LH
1.375 x 16.000 x 36.380
6
1099125
109-9125
End LH
1.375 x 16.000 x 30.000
5
1099123FHA
109-9123FHA
Half Arrow Center (Fabricated)
1.750 x 15.000 x 25.000
5
1099122FHA
109-9122FHA
Half Arrow Center RH (Fabricated)
1.750 x 15.000 x 36.118
6
1099121FHA
109-9121FHA
HA End RH (Fabricated)
1.750 x 15.000 x 29.760
5
1099124FHA
109-9124FHA
Half Arrow Center LH (Fabricated)
1.750 x 15.000 x 36.118
6
1099125FHA
109-9125FHA
HA End LH (Fabricated)
1.750 x 15.000 x 29.760
5
9W5734
9W-5734
Segment
1.375 x 19.000 x 12.250
3
9W5737
9W-5737
Segment RH
1.375 x 19.000 x 17.750
3
9W5730
9W-5730
Segment LH
1.375 x 19.000 x 17.750
3
1073490
107-3490
HD Segment
1.750 x 19.000 x 12.250
3
1073491
107-3491
HD Segment RH
1.750 x 19.000 x 17.750
3
1073492
107-3492
HD Segment LH
1.750 x 19.000 x 17.750
3
1167460
116-7460
HA Segment (Cast)
2.000 x 18.827 x 12.283
3
1167461
116-7461
HA Segment RH (Cast)
2.000 x 18.827 x 12.283
3
1167462
116-7462
HA Segment LH (Cast)
2.000 x 18.827 x 12.283
3
1957180CAST
195-7180CAST
Bolt on Top Plate Center
1.250 x 8.244 x 13.500
3
1957181CAST
195-7181CAST
Bolt on Top Plate RH
1.250 x 8.244 x 13.950
3
1957182CAST
195-7182CAST
Bolt on Top Plate LH
1.250 x 8.244 x 13.950
3
1386470
138-6470
C/IMP Segment REV
1.375 x 18.996 x 12.283
3
1386471
138-6471
C/IMP Segment RH REV
1.375 x 18.996 x 17.815
3
1386472
138-6472
C/IMP Segment LH REV
1.375 x 18.996 x 17.815
3
4T7141FHA
4T-7141FHA
Half Arrow Center (Fabricated)
1.750 x 15.000 x 24.438
4
4T7144FHA
4T-7144FHA
Half Arrow Center RH (Fabricated)
1.750 x 15.000 x 32.625
4
4T7142FHA
4T-7142FHA
HA End RH (Fabricated)
1.750 x 15.000 x 30.625
3
4T7145FHA
4T-7145FHA
Half Arrow Center LH (Fabricated)
1.750 x 15.000 x 32.625
4
4T7143FHA
4T-7143FHA
HA End LH (Fabricated)
1.750 x 15.000 x 30.625
3
1341748
134-1748
Spade Nose Base Edge
2.000 x 25.390 x 137.480
27
4T2986
4T-2986
Base Edge Wear Plate
1.000 x 10.000 x 30.625
5
1360878
136-0878
Base Edge Without Holes
1.750 x 12.000 x 137.500
1357115
135-7115
Base Edge With Segment Holes
2.000 x 11.000 x 140.472
