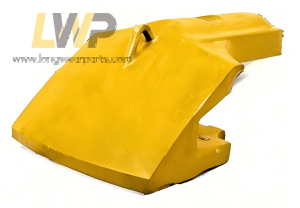

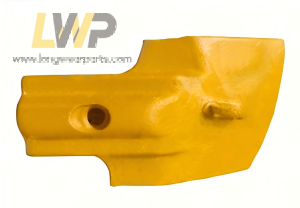

Hensley J-bolt Lip Shroud LS3501250J/LS3501250JR/LS3501250JL

Our aftermarket replacement Hensley J Bolt Lip Shrouds are professional mechanical quick-change lip protection system designed exclusively for Hensley GET tooth and adapter systems. Different from conventional weld-on shrouds and standard bolt-on segments, the J-Bolt structure adopts a fixed base + replaceable shroud split design. After welding the thin base plate onto the bucket lip one-time, users only replace the upper cast shroud in later maintenance. It completely eliminates repeated welding, cutting, grinding and heat damage to the expensive bucket cutting edge.

Hensley J-bolt lip shrouds LS2001350J/LS2001350JR/LS2001350JL can fit 50mm cutting edge blade, the max width is 343mm;

Hensley J-bolt lip shrouds LS2501500J/LS2501500JR/LS2501500JL can fit 63.5mm cutting edge blade, the max width is 380mm;

Hensley J-bolt lip shrouds LS2751675J/LS2751675JR/LS2751675JL can fit 70mm cutting edge blade, the max width is 425mm;

Hensley J-bolt lip shrouds LS3001000J/LS3001000JR/LS3001000JL can fit 75mm cutting edge blade, the max width is 254mm;

Hensley J-bolt lip shrouds LS3001600J/LS3001700JR/LS3001700JL can fit 75mm cutting edge blade, the max width is 406mm;

Hensley J-bolt lip shrouds LS350925JR/LS300925JL can fit 90mm cutting edge blade, the max width is 235mm;

Hensley J-bolt lip shrouds LS3501250J/LS3501250JR/LS3001250JL can fit 90mm cutting edge blade, the max width is 318mm;

Hensley J-bolt lip shrouds LS3501750J/LS3501750JR/LS3501750JL can fit 90mm cutting edge blade, the max width is 445mm;

Our aftermarket Hensley J-bolt style lip shrouds are widely compatible with Komatsu and CAT large loader/excavator buckets equipped with Hensley hammerless tooth systems, it provides continuous, stable and full-length lip protection while greatly reducing long-term fleet maintenance costs and downtime.

Our Wear protection parts include Half Arrow/Upper Wear Plate/Top Cover/Segment/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on. Welcome to contact us for more detailed information !
