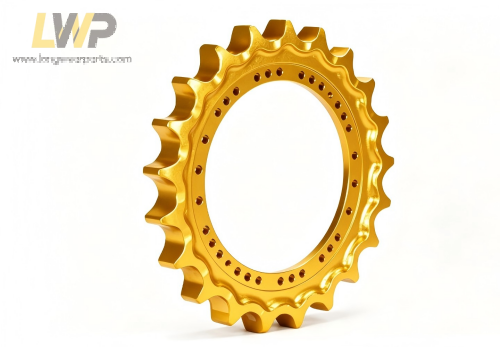

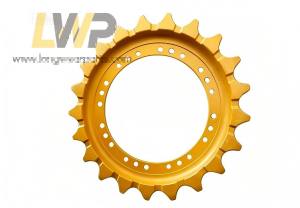

Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.
Long wear parts@ supply drive sprocket is the core power transmission component of crawler undercarriage system, mounted on final drive reducer to drive track chain for machine traveling. Fully compatible with all mainstream brand excavators from 1T mini digger to 90T mining excavator.
Our Core Advantages:
1) Premium Alloy Raw Material Adopt 35Mn2 / 40MnB / 42CrMo high-strength forged alloy steel, high tensile & impact toughness, effectively avoid tooth crack & break under heavy load, rocky & muddy harsh working sites.
2）Dual Heat Treatment Craft Overall quenching & tempering + tooth surface medium-frequency induction hardening. Surface hardness HRC 50–62, hardening depth 8–12mm. Balanced hard surface & tough core, outstanding abrasion resistance, service life 30% longer than ordinary sprockets.
3）1:1 OEM Precision Machining CNC full machining for tooth profile, pitch circle, inner spline, bolt hole circle. Strictly copy OEM drawing parameters, perfect meshing with original track chain, no track slipping, no abnormal vibration & noise, protect final drive from overload damage.
4) Two Structural Options Available
One-piece solid sprocket: Low cost, widely used for mini & medium excavators;
Split segmented rim sprocket: Only replace worn tooth ring, save maintenance cost for large mining machines;
5）Full Model Coverage & Customization Complete part numbers for CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr. Support ODM/OEM: Custom size, tooth count, painting color, logo marking per drawings & samples.
Welcome to ask Long wear parts@ excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Model
Part number
Alternative No.
Description
S130,S130-2,S130-3,S130-5
21081005A
2108-1005A
Doosan/Daewoo Drive Sprocket
S130,S130-2,S130-3,S130-5
21081005B
2108-1005B
Doosan/Daewoo Drive Sprocket
S130,S130-2,S130-3,S130-5
21081040
2108-1040
Doosan/Daewoo Drive Sprocket
S130,S130-2,S130-3,S130-5
UR171E221G
UR171E221-G
Doosan/Daewoo Drive Sprocket
DX140LC
K1018303
K1018303
Doosan/Daewoo Drive Sprocket
DX140LC
21081040B
2108-1040B
Doosan/Daewoo Drive Sprocket
DX140LC
20010800105
200108-00105
Doosan/Daewoo Drive Sprocket
S170
21081019
2108-1019
Doosan/Daewoo Drive Sprocket
S155LC-V,S170,S170-3,S170-5
21081019B
2108-1019B
Doosan/Daewoo Sprocket Rim
S155LC-V,S170,S170-3,S170-5
21081019C
2108-1019C
Doosan/Daewoo Sprocket Rim
S155LC-V,S170,S170-3,S170-5
UR171V323G
UR171V323-G
Doosan/Daewoo Sprocket Rim
DX160LC,DX180LC
K1011438
K1011438
Doosan/Daewoo Sprocket Rim
DX180,T17
K1011438A
K1011438A
Doosan/Daewoo Sprocket Rim
DH200LC,DH220LC
21081014
2108-1014
Doosan/Daewoo Sprocket Rim
S200, S220
21081014S
2108-1014S
Doosan/Daewoo Sprocket Rim
DX225LCA,DX200A,DX220A
20010800095A
200108-00095A
Doosan/Daewoo Sprocket Rim
