Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

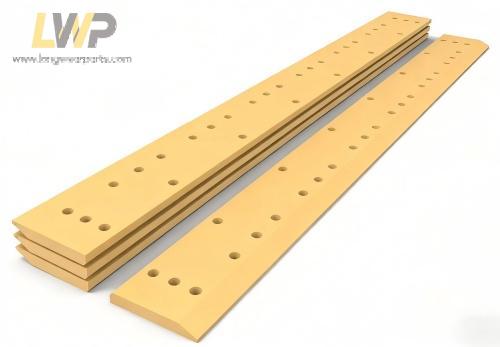

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
4T6625
4T-6625
Drop Center
0.875 x 13.000 x 42.250
14
4T2940
4T-2940
Level Cut Center
0.750 x 10.000 x 42.250
7
4T2953
4T-2953
End
0.750 x 10.000 x 24.500
4
4T2939
4T-2939
Optional One Piece Edge
0.750 x 10.000 x 90.750
15
9F1831
9F-1831
Router Bit
0.625 x 8.000 x 14.000
4
4T6626
4T-6626
Drop Center
0.875 x 13.000 x 55.500
16
4T2882
4T-2882
Level Cut Center
0.750 x 10.000 x 55.500
16
4T2883
4T-2883
End
0.750 x 10.000 x 20.250
6
4T8807
4T-8807
Wider Level Cut End RH
0.875 x 12.000 x 20.125
6
4T8808
4T-8808
Wider Level Cut End LH
0.875 x 12.000 x 20.125
6
8F7232
8F-7232
Router Bit
0.750 x 8.000 x 16.000
5
D22506
D-22506
Straight Blade Support
0.750 x 6.500 x 96.750
28
4T6627
4T-6627
Drop Center
0.875 x 13.000 x 54.250
18
4T2941
4T-2941
Level Cut Center
0.750 x 10.000 x 54.250
9
4T2942
4T-2942
End
0.750 x 10.000 x 23.500
4
4T2947
4T-2947
Optional One Piece Edge
0.750 x 10.000 x 101.375
17
4T6565
4T-6565
Drop Center
0.875 x 16.000 x 54.250
18
4T6617
4T-6617
Level Cut Center
0.875 x 13.000 x 54.250
9
4T6612
4T-6612
End
0.875 x 13.000 x 29.500
5
4T2900
4T-2900
HD Drop Center
1.125 x 16.000 x 54.250
18
4T6380
4T-6380
HD End
1.125 x 13.000 x 29.500
5
6F3319
6F-3319
RH Router Bit Support
1.000 x 8.750 x 22.875
5
6F3320
6F-3320
LH Router Bit Support
1.000 x 8.750 x 22.875
5
4T2874
4T-2874
Drop Center
0.750 x 10.000 x 40.250
20
4T2962
4T-2962
Level Cut Center
0.750 x 8.000 x 40.250
10
4T2965
4T-2965
End
0.625 x 8.000 x 15.500
4
4T2884
4T-2884
End
0.750 x 10.000 x 17.375
5
4T8833
4T-8833
Wider Level Cut End RH
0.875 x 12.000 x 17.375
5
4T8834
4T-8834
Wider Level Cut End LH
0.875 x 12.000 x 17.375
5
