Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

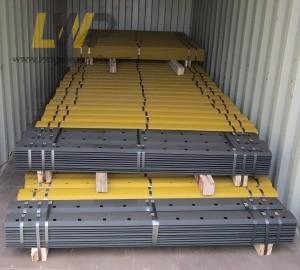

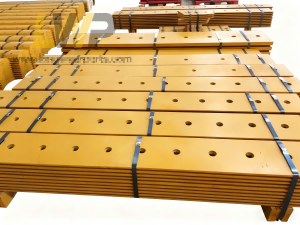

Our aftermarket full sets of Caterpillar 955 Cutting Edge and End Bits are heavy-duty GET wear parts exclusively manufactured for the Caterpillar 955 wheel loader. The Cat 955 own strong breakout force, stable tractive power and enlarged bucket capacity, widely used in aggregate quarries, crushed stone handling, mine auxiliary loading, port bulk stacking, road foundation backfill and high-density gravel stockpile rehandling.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Lead Time: Stock goods 5-7 working days; Mass production 25-35 working days; Custom parts 35-50 working days. All goods will pass strict inspection before delivery. Welcome to contact us for more detailed information !
Part number
Alternative number
Description
Dimension
Hole
5V7437
5V-7437
Base Edge For Bolt-on Edges
1.000 x 9.750 x 88.500
16
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
1U1471
1U-1471
Center
1.180 x 14.170 x 44.125
4
9K8461
9K-8461
Base Edge Without Holes
1.000 x 9.000 x 88.500
8K7525
8K-7525
Corner no holes RH
1.750 x 9.000 x 9.750
8K7526
8K-7526
Corner no holes LH
1.750 x 9.000 x 9.750
6W2978
6W-2978
Base Edge With Segment
1.250 x 11.000 x 89.000
30
5V1783
5V-1783
Corner 1 hole RH
1.000 x 8.000 x 8.500
1
5V1784
5V-1784
Corner 1 hole LH
1.000 x 8.000 x 8.500
1
8E5300
8E-5300
Corner 2 hole RH
2.000 x 7.996 x 9.276
2
8E5301
8E-5301
Corner 2 hole LH
2.000 x 7.996 x 9.276
2
2530062
253-0062
2 Hole Corner Protector RH
1.125 x 8.188 x 13.375
2
2530063
253-0063
2 Hole Corner Protector LH
1.125 x 8.188 x 13.375
2
1U2410
1U-2410
Center
1.180 x 14.170 x 37.750
3
1U2411
1U-2411
Center
1.180 x 14.170 x 41.625
3
4T8101
4T-8101
End
1.250 x 19.625 x 6.688
3
4T6692
4T-6692
Segment
1.000 x 11.000 x 7.688
2
4T6692HA
4T-6692HA
HA Segment (Cast)
1.375 x 10.875 x 7.688
2
1V2911
1V-2911
Base Edge For Bolt-on Edges
1.000 x 9.000 x 90.000
16
1U1473
1U-1473
Center
1.180 x 14.170 x 44.875
4
1V9077
1V-9077
Base Edge Without Holes
1.000 x 9.000 x 90.000
4V8667
4V-8667
Corner 1 hole RH
1.000 x 6.375 x 10.000
4V8668
4V-8668
Corner 1 hole LH
1.000 x 6.375 x 10.000
5V7263
5V-7263
Base Edge For Bolt-on Edges
1.250 x 11.000 x 95.813
18
2V7298
2V-7298
Base Edge Without Holes
1.250 x 11.000 x 95.813
4T8074
4T-8074
Multi purpose dozer center
0.625 x 8.000 x 86.000
14
9K0658
9K-0658
Base Edge Without Holes
1.250 x 11.000 x 91.100
