Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

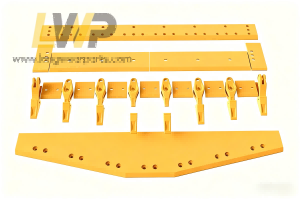

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .

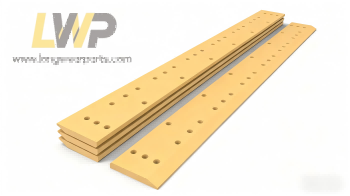

Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1U0295
1U-0295
Center
1.000 x 11.000 x 40.375
3
8E4567
8E-4567
Center
1.000 x 11.000 x 43.500
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
9W3486
9W-3486
C/IMP Center NR RH
1.000 x 8.000 x 40.375
3
9W3487
9W-3487
C/IMP Center NR LH
1.000 x 8.000 x 40.375
3
1356728
135-6728
C/IMP Center NR RH
1.000 x 8.000 x 43.500
3
1356729
135-6729
C/IMP Center NR LH
1.000 x 8.000 x 43.500
3
9W3481
9W-3481
C/IMP End NR RH
1.000 x 10.563 x 6.250
2
9W3482
9W-3482
C/IMP End NR LH
1.000 x 10.563 x 6.250
2
4T6694
4T-6694
Segment
1.000 x 11.000 x 8.860
2
8E4569
8E-4569
Segment
1.000 x 11.000 x 9.750
2
1321035
132-1035
HD Segment
1.375 x 11.000 x 8.860
2
4T6694HA
4T-6694HA
HA Segment (Cast)
1.375 x 10.875 x 9.000
2
5G8342
5G-8342
Base Edge With Segment Holes
0.750 x 7.500 x 93.100
28
