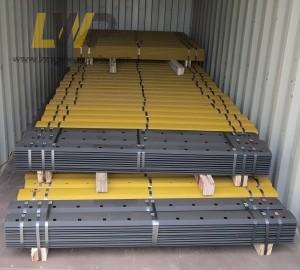

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

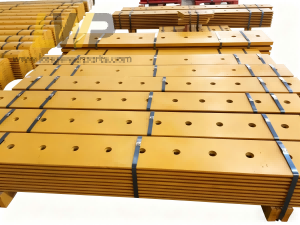

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
8K6588
8K-6588
Base Edge
1.750 x 12.000 x 110.250
8K5056
8K-5056
Base Edge Without Holes
1.750 x 12.000 x 128.750
7K9309FAB
7K-9309FAB
Corner no holes RH
1.750 x 10.758 x 12.500
7K9310FAB
7K-9310FAB
Corner no holes LH
1.750 x 10.758 x 12.500
4E6085
4E-6085
Base Edge With Segment Holes
1.750 x 12.000 x 140.160
30
6W9311
6W-9311
Base Edge Without Segment Holes
1.750 x 12.000 x 140.160
18
7V4181
7V-4181
Corner 1 hole RH
1.625 x 10.000 x 11.500
1
7V4180
7V-4180
Corner 1 hole LH
1.625 x 10.000 x 11.500
1
9W1375
9W-1375
Center
1.375 x 16.000 x 60.000
3
1U0761
1U-0761
End
1.625 x 22.000 x 10.375
3
9W1375-13
9W-1375-13
HD Center
1.625 x 16.000 x 60.000
3
1004043
100-4043
HD End
1.750 x 22.000 x 10.375
3
9W1375HAN
9W1375HAN-1375HAN
Narrow HA Center (Cast)
1.875 x 12.750 x 39.875
2
2174726
217-4726
HA End (Cast)
1.875 x 16.750 x 10.500
6
1092697
109-2697
C/IMP Center NR LH/RH
3
1230334
123-0334
C/IMP Center NR LH
1.375 x 16.500 x 10.375
3
1230335
123-0335
C/IMP Center NR RH
1.375 x 16.500 x 10.375
3
2085177
208-5177
C/IMP End REV
1.625 x 22.000 x 10.375
3
4T6700
4T-6700
Segment
1.180 x 14.170 x 11.500
2
1078580
107-8580
HD Segment
1.750 x 14.250 x 11.500
2
1737447
173-7447
HA Segment (Cast)
1.750 x 13.750 x 11.375
2
9V5793
9V-5793
Rear Wear Plate
1.000 x 10.000 x 26.750
4
6Y3609
6Y-3609
Heavy Duty Wear Plate
1.375 x 10.000 x 26.750
4
1324713
132-4713
Hex Bolt Wear Plate
1.000 x 10.000 x 26.750
4
3V0187
3V-0187
Base Edge For Bolt-on Edges or Teeth
1.750 x 12.000 x 143.500
18
