Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1U4933
1U-4933
Base Edge Wear Plate
1.375 x 10.000 x 40.750
7
4T6617
4T-6617
Base Edge Wear Plate with HA segment
0.875 x 13.000 x 54.250
9

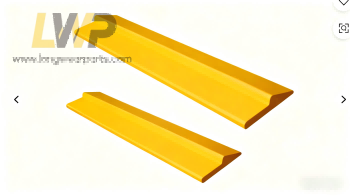

4T6760
4T-6760
Segment
1.625 x 23.250 x 16.188
4
4T6761
4T-6761
Segment RH
1.625 x 23.250 x 24.000
4
4T6762
4T-6762
Segment LH
1.625 x 23.250 x 24.000
4
1073530
107-3530
HD Segment
2.000 x 23.250 x 16.188
4
1073531
107-3531
HD Segment RH
2.000 x 23.250 x 24.000
4
1073532
107-3532
HD Segment LH
2.000 x 23.250 x 24.000
4
1076294
107-6294
Extra HD Segment
2.375 x 23.250 x 16.180
4
1076295
107-6295
Extra HD Segment RH
2.375 x 23.250 x 24.000
4
1076296
107-6296
Extra HD Segment LH
2.375 x 23.250 x 24.000
4
2755460
275-5460
HA Segment (Cast)
2.500 x 21.336 x 16.142
4
2755461
275-5461
HA Segment RH (Cast)
2.500 x 21.336 x 17.165
4
2755462
275-5462
HA Segment LH (Cast)
2.500 x 21.336 x 17.165
4
2755470
275-5470
HA Segment (Cast)
3.250 x 21.336 x 16.142
4
2755471
275-5471
HA Segment RH (Cast)
3.250 x 21.336 x 17.165
4
2755472
275-5472
HA Segment LH (Cast)
3.250 x 21.336 x 17.165
4
1957096CAST
195-7096CAST
Bolt on Top Plate Center
1.250 x 9.625 x 16.000
4
1957097CAST
195-7097CAST
Bolt on Top Plate RH
1.250 x 9.625 x 20.250
4
1957098CAST
195-7098CAST
Bolt on Top Plate LH
1.250 x 9.625 x 20.250
4
1380861
138-0861
C/IMP Segment REV
4
1380862
138-0862
C/IMP Segment RH REV
4
1380863
138-0863
C/IMP Segment LH REV
4
2Q4344
2Q-4344
Stepped Spade Nose Base Edge
21
2Q4338
2Q-4338
Corner LH/RH for 2-9J9600 Protectors
1938221
193-8221
Corner LH/RH for 2-9J9600 Protectors
4E0055
4E-0055
Modulok Base Edge Assembly
x x 132.100
