Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

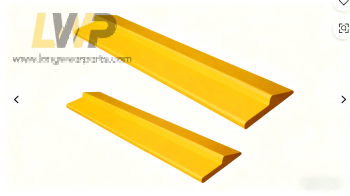

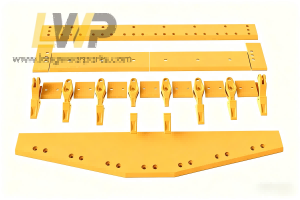

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
8K5000
8K-5000
Base Edge Without Holes
1.750 x 12.000 x 120.750
7K9309FAB
7K-9309FAB
Corner no holes RH
1.750 x 10.758 x 12.500
7K9310FAB
7K-9310FAB
Corner no holes LH
1.750 x 10.758 x 12.500
8K5056
8K-5056
Base Edge Without Holes
1.750 x 12.000 x 128.750
9V0237
9V-0237
Base Edge Without Holes
2.000 x 13.000 x 122.000
3V3311
3V-3311
Corner no holes RH
3V3310
3V-3310
Corner no holes LH
9V4650
9V-4650
Spade Nose Base Edge Without Holes
2.000 x 22.750 x 128.375
8V9591
8V-9591
Spade Nose Base Edge Without Holes
2.000 x 22.750 x 129.000
9V0235
9V-0235
Base Edge Without Holes
2.000 x 13.000 x 129.500
7K2326
7K-2326
Base Edge Without Holes
1.750 x 12.000 x 126.000
