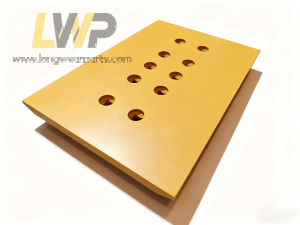

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
6W2977
6W-2977
Base Edge With Segment Holes
1.000 x 9.625 x 79.500
28
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
New Style 2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
New Style 2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
1U0605
1U-0605
Center
1.000 x 11.000 x 33.500
3
1U0295
1U-0295
Center
1.000 x 11.000 x 40.375
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
4T6691
4T-6691
Segment
1.000 x 11.000 x 6.875
2
8K6452
8K-6452
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.000 x 81.750
16
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
1U1467
1U-1467
Center
1.000 x 11.000 x 40.750
4
9V6572
9V-6572
Base Edge With Segment Holes
1.000 x 9.650 x 93.310
28
5V4670
5V-4670
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.625 x 93.500
16
9W3486
9W-3486
C/IMP Center NR RH
1.000 x 8.000 x 40.375
3
9W3487
9W-3487
C/IMP Center NR LH
1.000 x 8.000 x 40.375
3
9W3481
9W-3481
C/IMP End NR RH
1.000 x 10.563 x 6.250
2
9W3482
9W-3482
C/IMP End NR LH
1.000 x 10.563 x 6.250
2
4T6694
4T-6694
Segment
1.000 x 11.000 x 8.860
2
1321035
132-1035
HD Segment
1.375 x 11.000 x 8.860
2
4T6694HA
4T-6694HA
HA Segment (Cast)
1.375 x 10.875 x 9.000
2
