Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

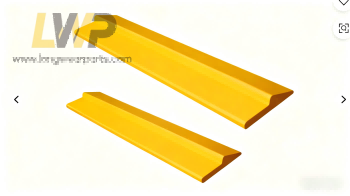

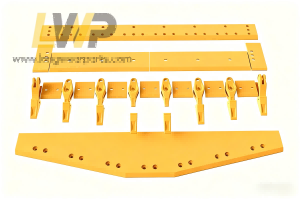

Our aftermarket full sets of Caterpillar 980 Cutting Edge and End Bits replacement are heavy-duty bolt-on Ground Engaging Tools (GET) exclusively engineered for the Caterpillar 980 large wheel loader series, including 980H, 980K, 980L, 980M, 980GC and 980XE high-production models. They are widely deployed in large quarries, mine bulk material handling, port terminal stockpiling, aggregate yard heavy-cycle operation, large-scale earthwork backfill and high-yield commercial sand and gravel production lines.
Purchasing Notes:
Strictly confirm Cat 980 sub-model (H/K/L/M/GC/XE), distinguish general-purpose bucket and heavy-duty rock bucket. Different bucket types have exclusive hole layouts without interchangeability. Please provide OEM part number or old worn part photos for double verification to avoid wrong delivery.
2. Prioritize hardness and toughness balance, avoid single high hardness
Ultra-high hardness and brittle steel is prone to chipping and cracking under large rock impact. Qualified Cat 980 GET parts must balance super wear resistance and strong impact toughness to adapt to long-term high-frequency heavy cyclic load.
3. Strictly inspect plate thickness and flatness after delivery
Check the actual plate thickness, straightness and flatness of the goods. Reject unqualified products with insufficient thickness, bending, torsion and warpage to prevent structural deformation and failure under ultra-heavy high-cycle load.
4. Verify full CNC high-precision hole machining
High-frequency heavy cyclic operation has zero tolerance for assembly errors. Inaccurate hole positions will cause equipment resonance vibration, bolt fatigue and accelerated part damage. Full CNC precision drilling is mandatory.
Welcome to contact us for more detailed information.Normal production lead time: 25–35 working days upon receipt of deposit. The lead time depends on order quantity and production schedule. We will confirm the exact delivery schedule and notify you once production starts. Rush orders are available upon negotiation.
Part number
Alternative number
Description
Dimension
Hole
1U0762
1U-0762
Center
1.375 x 16.000 x 55.250
3
1004047
100-4047
HD Center
1.625 x 16.000 x 55.375
3
1368758
136-8758
Extra HD Center
2.000 x 16.000 x 55.250
3
1368759
136-8759
Extra HD End
2.000 x 22.000 x 10.375
3
2174725
217-4725
HA Center (Cast)
1.750 x 16.750 x 36.750
4
2174726
217-4726
HA End (Cast)
1.875 x 16.750 x 10.500
6
2174725TP
217-4725TP
Bolt on Top Plate Center
1.250 x 13.515 x 36.750
4
2174726TPR
217-4726TPR
Bolt on Top Plate RH
1.250 x 13.372 x 6.000
3
2174726TPL
217-4726TPL
Bolt on Top Plate LH
1.250 x 13.372 x 6.000
3
2174725N
217-4725N
Narrow HA Center
1.875 x 12.750 x 36.750
2
2085344
208-5344
C/IMP Center REV
3
2085177
208-5177
C/IMP End REV
1.625 x 22.000 x 10.375
3
6Y3271
6Y-3271
C/IMP Center NR LH/RH
1.375 x 13.000 x 55.250
3
1230334
123-0334
C/IMP Center NR LH
1.375 x 16.500 x 10.375
3
1230335
123-0335
C/IMP Center NR RH
1.375 x 16.500 x 10.375
3
9W6750
9W-6750
Rear Wear Plate
1.375 x 10.000 x 23.500
4
7V0909
7V-0909
Base Edge For Bolt-on Edges
1.500 x 11.813 x 130.875
12
7V9270
7V-9270
Corner no holes RH
1.625 x 10.000 x 11.500
7V0910
7V-0910
Rear Wear Plate
1.625 x 11.500 x 23.625
4
4V1741
4V-1741
Base Edge For Bolt-on Edges
1.750 x 12.000 x 132.875
24
7V8648
7V-8648
Corner no holes RH
7V8647
7V-8647
Corner no holes LH
4T6589
4T-6589
Center
1.375 x 16.000 x 65.625
8
4T6590
4T-6590
End
1.375 x 16.000 x 33.750
4
1078574
107-8574
HD Center
1.750 x 16.000 x 65.625
8
1078575
107-8575
HD End
1.750 x 16.000 x 33.750
4
4V2482
4V-2482
Base Edge For Bolt-on Edges
1.500 x 11.500 x 132.875
16
1119770
111-9770
Base Edge With Segment
1.750 x 12.000 x 134.060
30
1358246
135-8246
Sidebar Protector
1.125 x 5.750 x 18.188
