Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

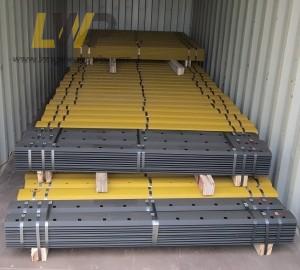

Our aftermarket full sets of Caterpillar D9 Cutting Edge & End Bits replacement are ultra heavy-duty ground engaging tools designed for CAT D9 series large dozers, covering D9N, D9R, D9T models. The Cat D9 large dozers are widely deployed for open-pit mining stripping, massive overburden removal, large volume rock and earth moving, heavy road subgrade construction, stockpile management and land reclamation projects.
Our factory offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit,you can select material & hardness by working condition.
We suggest to use high tensile grade 10.9 or 12.9 bolts due to Caterpillar D9 blade edge works under huge impact load. Old bolts often fatigue, so it is better to replace new bolts together while changing cutting edges and end bits. Besides ,it is important to confirm raw material grade and heat treatment process with supplier. Real full through-hardened boron steel edge has uniform hardness through the whole plate. Surface-only hardened edges wear quickly and bend easily under D9 heavy mining load.
Welcome to contact us for Caterpillar dozer cutting edge and end bits, our products cover Cat D3, D4, D5, D6, D7, D8, D9, D10, D11 bulldozers. To quote precisely, please share your bulldozer model, OEM part numbers for cutting edge & end bits, plate thickness, required bevel type, end bit style , we can provide material and hardness test report with stable lead time.
| Part number | Alternative number | Description | Dimension | Hole |
| 4T6381 | 4T-6381 | Center | 1.125 x 13.000 x 53.250 | 9 |
| 4T6382 | 4T-6382 | End | 1.125 x 13.000 x 25.000 | 6 |
| 9W0775 | 9W-0775 | Center | 1.375 x 16.000 x 29.875 | 5 |
| 7T9781 | 7T-9781 | End | 1.375 x 16.000 x 34.500 | 5 |
| 7T9126 | 7T-9126 | Heavier Center | 1.375 x 13.000 x 53.250 | 9 |
| 9W4503 | 9W-4503 | Heavier End | 1.375 x 13.000 x 25.000 | 6 |
| 9W4507 | 9W-4507 | Heavy Duty Center | 1.625 x 13.000 x 53.250 | 9 |
| 9W4506 | 9W-4506 | Heavy Duty End | 1.625 x 13.000 x 25.000 | 6 |
| 6Y0313 | 6Y-0313 | Wide Center | 1.375 x 16.000 x 53.250 | 9 |
| 6Y0314 | 6Y-0314 | Wide RH End | 1.375 x 16.000 x 25.000 | 6 |
| 6Y0315 | 6Y-0315 | Wide LH End | 1.375 x 16.000 x 25.000 | 6 |
| 7T4335 | 7T-4335 | Heavy Duty Wide Center | 1.625 x 16.000 x 53.250 | 9 |
| 7T4343 | 7T-4343 | Heavy Duty Wide RH End | 1.625 x 16.000 x 25.000 | 6 |
| 7T4344 | 7T-4344 | Heavy Duty Wide LH End | 1.625 x 16.000 x 25.000 | 6 |
| 9W3931 | 9W-3931 | Extra Heavy Duty Center | 1.750 x 16.000 x 29.875 | 5 |
| 9W3929 | 9W-3929 | Extra Heavy Duty End | 1.750 x 16.000 x 34.500 | 5 |
| 6Y0479 | 6Y-0479 | Extra Heavy Duty Wide Center | 1.750 x 16.000 x 53.250 | 9 |
| 6Y0480 | 6Y-0480 | Extra Heavy Duty Wide RH End | 1.750 x 16.000 x 25.000 | 6 |
| 6Y0481 | 6Y-0481 | Extra Heavy Duty Wide LH End | 1.750 x 16.000 x 25.000 | 6 |
