Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

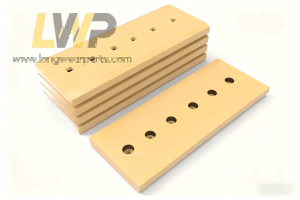

Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number
Alternative number
Description
Dimension
Hole
4T2977
4T-2977
Center
0.625 x 8.000 x 71.875
18
4T2976
4T-2976
Center
0.625 x 8.000 x 87.875
22
4T3021
4T-3021
Center
0.750 x 8.000 x 71.875
18
4T3023
4T-3023
Center
0.750 x 8.000 x 87.750
22
3G8321
3G-8321
Hot Cup End Bit RH
1.000 x 10.000 x 17.500
6
3G8322
3G-8322
Hot Cup End Bit LH
1.000 x 10.000 x 17.500
6
4T3051
4T-3051
Level Cut End Bit RH
0.750 x 8.000 x 13.250
6
4T3052
4T-3052
Level Cut End Bit LH
0.750 x 8.000 x 13.250
6
4T6262
4T-6262
Center
0.750 x 8.000 x 40.125
7
7T9977
7T-9977
Heavy Duty Center
1.000 x 8.000 x 40.125
7
7T9976
7T-9976
Heavy Duty Center
1.000 x 8.000 x 41.500
7
7T9978
7T-9978
Heavy Duty End
1.000 x 8.000 x 25.875
4
4T4455
4T-4455
Hot Cup End Bit RH
1.250 x 10.750 x 17.500
6
4T4454
4T-4454
Hot Cup End Bit LH
1.250 x 10.750 x 17.500
6
4T4435
4T-4435
Level Cut End Bit RH
1.000 x 8.000 x 16.000
6
4T4436
4T-4436
Level Cut End Bit LH
1.000 x 8.000 x 16.000
6
4T2952
4T-2952
Center
0.750 x 10.000 x 31.500
5
4T2985
4T-2985
Heavy Duty Center
1.000 x 10.000 x 31.500
5
1099093
109-9093
Center
0.750 x 10.000 x 35.000
6
9W1878
9W-1878
Center
0.750 x 10.000 x 48.250
8
6Y3840
6Y-3840
Heavy Duty Center
1.000 x 10.000 x 48.250
8
1060956
106-0956
Center
0.750 x 10.000 x 54.375
9
2296599
229-6599
Heavy Duty Center
1.000 x 10.000 x 54.375
9
2194599
219-4599
Center
0.750 x 10.000 x 57.720
11
2296958
229-6958
Center
1.000 x 10.000 x 63.125
11
4T3011
4T-3011
Center
0.750 x 10.000 x 63.750
11
6Y4410
6Y-4410
Cast End Bit LH
0.750 x 12.493 x 19.985
6
6Y4411
6Y-4411
Cast End Bit RH
0.750 x 12.493 x 19.985
6
9W1875
9W-1875
Cast End Bit RH
1.000 x 11.875 x 18.500
6
9W1876
9W-1876
Cast End Bit LH
1.000 x 11.875 x 18.500
6
9W8874
9W-8874
Level Cut End Bit RH
1.000 x 10.000 x 18.375
6
9W8875
9W-8875
Level Cut End Bit LH
1.000 x 10.000 x 18.375
6
1228617
122-8617
Level Cut End Bit LH
1.375 x 10.000 x 18.000
6
1228618
122-8618
Level Cut End Bit RH
1.375 x 10.000 x 18.000
6
6Y1812
6Y-1812
Dozer Blade Support
1.000 x 7.350 x 158.000
32
6Y1390
6Y-1390
Dozer Blade Support
1.000 x 7.500 x 97.000
16
4Z9239
4Z-9239
Dozer Blade Support
1.000 x 7.500 x 109.000
18
8E5199
8E-5199
Dozer Blade Support
1.000 x 7.500 x 127.000
27
8E5205
8E-5205
Dozer End Bit Support
1.000 x 7.500 x 16.509
6
9U8057
9U-8057
End
0.750 x 8.000 x 24.688
4
