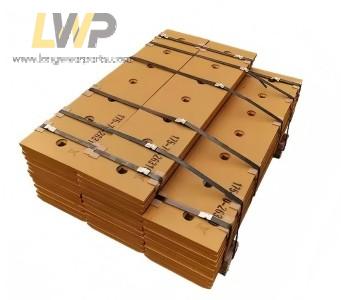

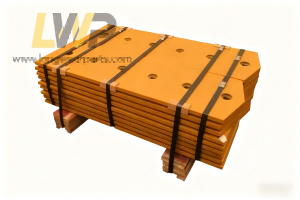

Caterpillar dozer D6 cutting edge 4T2315/8E9377/4T8940

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Our aftermarket replacement full sets of Caterpillar D6 Cutting Edge & End Bits are heavy-duty ground engaging tools built for CAT D6 series medium dozers, including D6N, D6R, D6T and D6XE variants. The D6 dozers are widely deployed for bulk earthmoving, highway subgrade construction, quarry site prep and large slope shaping, so our aftermarket D6 cutting edge set adopts thicker plate design to withstand continuous heavy abrasion and impact loads.
Our factory offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit,you can select material & hardness by working condition.
Our high-quality aftermarket D6 cutting edge and end bits  replacements are compatible with all Caterpillar D6 series dozers, including Standard, LGP, VPAT, SU semi-universal blade, straight blade and angle blade versions.
Welcome to contact us for more detailed information : we promise that every batch undergoes hardness testing, flatness calibration and hole position inspection. Depend on stable quality, reasonable price and reliable lead time , we win more and more global customers's recognize and long-term orders !


Part number Alternative number Description Dimension Hole
3428851 342-8851 Center 0.750 x 8.000 x 43.835 7
3G4282 3G-4282 Center 0.750 x 8.000 x 45.375 7
1774550 177-4550 Center 0.750 x 8.000 x 58.898 9
4T2315 4T-2315 Center 0.750 x 8.000 x 61.250 10
1273050 127-3050 Center 10
1774551 177-4551 Level Cut End Bit RH 0.750 x 8.000 x 21.220 4
1774552 177-4552 Level Cut End Bit LH 0.750 x 8.000 x 21.220 4
1406787 140-6787 Hot Cup End Bit RH 0.875 x 9.625 x 21.000 4
1406788 140-6788 Hot Cup End Bit LH 0.875 x 9.625 x 21.000 4
4T5407 4T-5407 Cast End Bit RH 1.000 x 10.000 x 21.000 4
4T5408 4T-5408 Cast End Bit LH 1.000 x 10.000 x 21.000 4
3G4285 3G-4285 Level Cut End Bit LH/RH 0.750 x 8.000 x 16.750 4
8E9379 8E-9379 Level Cut End Bit RH 1.000 x 8.000 x 18.500 4
8E9378 8E-9378 Level Cut End Bit LH 1.000 x 8.000 x 18.500 4
8E9502 8E-9502 Dozer Blade/End Bit Support 0.750 x 6.693 x 124.354 22
8E9377 8E-9377 Center 0.625 x 8.000 x 41.500 7
2944519 294-4519 Dozer Foldable Center 0.625 x 8.000 x
3710758 371-0758 Dozer Foldable Center 0.750 x 8.000 x 5
4T8940 4T-8940 Center 0.625 x 8.000 x 47.000 8
2971705 297-1705 Dozer Foldable Center 0.625 x 8.000 x 5
8E7245 8E-7245 Center 0.625 x 8.000 x 53.400 9
3710786 371-0786 Dozer Foldable Center 0.625 x 8.000 x 6
3000168 300-0168 Dozer Foldable Side End Bit 0.625 x 8.000 x
2971699 297-1699 Dozer Foldable Side End Bit 0.625 x 8.000 x 7
