Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

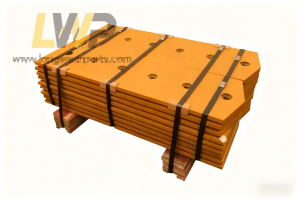

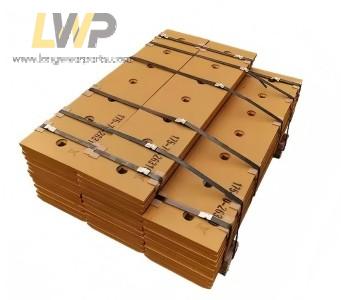

Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number
Alternative number
Description
Dimension
Hole
4T8797
4T-8797
Center
1.000 x 10.000 x 39.000
6
4T8798
4T-8798
End
1.000 x 10.000 x 42.375
7
4T2889
4T-2889
Center
1.000 x 10.000 x 55.500
9
4T6531
4T-6531
Center
1.000 x 10.000 x 59.875
10
4T6532
4T-6532
End
1.000 x 10.000 x 35.875
6
4J8843
4J-8843
Cast End Bit RH
1.125 x 11.997 x 18.996
7
4J8844
4J-8844
Cast End Bit LH
1.125 x 11.997 x 18.996
7
4J8843HD
4J-8843HD
Cast End Bit RH
1.126 x 12.430 x 21.231
7
4J8844HD
4J-8844HD
Cast End Bit LH
1.126 x 12.430 x 21.231
7
3G8293
3G-8293
Hot Cup End Bit RH
0.875 x 13.125 x 21.625
7
3G8294
3G-8294
Hot Cup End Bit LH
0.875 x 13.125 x 21.625
7
3G8315
3G-8315
Hot Cup End Bit RH
1.250 x 11.530 x 20.910
7
3G8316
3G-8316
Hot Cup End Bit LH
1.250 x 11.530 x 20.910
7
4T6505
4T-6505
Level Cut End Bit RH
1.000 x 10.000 x 18.580
7
4T6506
4T-6506
Level Cut End Bit LH
1.000 x 10.000 x 18.580
7
4T6645
4T-6645
Sole Plate
1.000 x 10.000 x 55.440
6
1233754
123-3754
Wide Center (Offset Holes)
2.500 x 13.000 x 42.375
6
1233755
123-3755
Wide End (Offset Holes)
2.500 x 13.000 x 38.400
6
1233756
123-3756
Wide End (Offset Holes)
2.500 x 13.000 x 38.400
6
1247284
124-7284
End Bit (Long Side) RH
2.375 x x
7
1247285
124-7285
End Bit (Long Side) LH
2.375 x x
7
1282870
128-2870
End Bit (Short Side) RH
2.375 x x
7
1282871
128-2871
End Bit (Short Side) LH
2.375 x x
7
