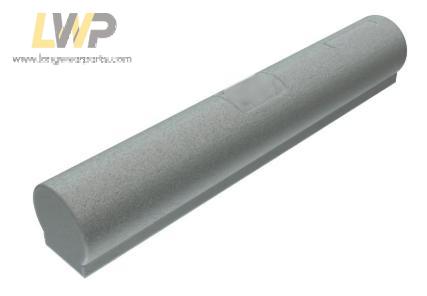

Caterpillar Bimetallic Roll Bar 280-4098/2804098

Products information
1)Material: High chromium white iron with a mild steel weldable backing plate
1)Surface: grey/silver metallic or as your request
2)Hardness: 63-65HRC
3)Technique: casting , adopt vacuum brazed laminated
5) Package: strong plywood crate
6) Application : mainly for Bucket front side protection.

Product Description:

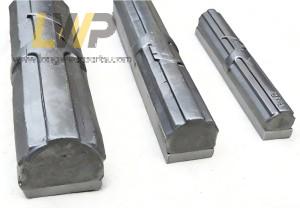

Long wear parts Roll bars are designed as easy-to-weld wear protection devices , they are mainly for Bucket front side protection, protecting the leading edge of bulldozers, loaders, mining excavators, and other equipment with maximum wear protection while minimizing drag.


Except Roll bars, Long wear parts also supply Wear Blocks for wear and impact Protection, include chock block, chocky bar, wear button,wear donut,tungsten carbide wear plate,wear bar,grouser bar,grizzly bar,skid bar etc.


Part No Alternative number Description Length Width Diameter
280-4096 2804096 1.25 inch Roll Bar 229 38 32
280-4097 2804097 2.0 inch Roll Bar 305 52 51
280-4098 2804098 3.0 inch Roll Bar 305 69 78
494-8980 4948980 5.0 inch Roll Bar 305 114 127
