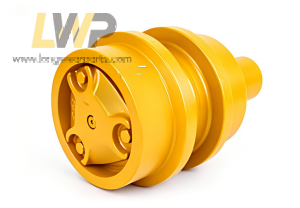

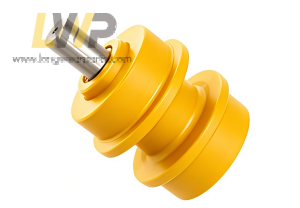

Products information 1)Idler roller body material: 50Mn/40Mn2/42CrMo 2)Surface hardness: HRC48-55 ; 3)Shaft material: 40Cr/#45Carbon steel 4)Bearing/Bushing material: GCr15 5)Package: packed in strong pallets 6)Application: Used to support the track, prevent sagging, and maintain tension and linear guidance.
Long wear parts@ supply high quality Volvo Carrier Roller,Volvo Upper Roller,Volvo Top Roller, Volvo Rodillos Superiores,Volvo Rullo Superiore.
1) Dimensions
Outer Diameter: 200–450 mm (Varies by model)
Wheel Width: 120–220 mm
Axle Diameter: 50–90 mm
Center Distance: Customized to track frame specifications
2) Load Capacity
Small (6–15 tons): 3–8 tons per wheel
Medium (20–30 tons): 10–18 tons per wheel
Large (Over 40 tons): 20–35 tons per wheel
3) Service Life & Operating Conditions
Heavy-Duty Mining: ≥ 3,000 hours
Earthmoving: ≥ 5,000 hours
Operating Temperature: -30°C ~ 100°C
Long wear parts@ Upper Roller/Top Roller/Rodillos Superiores are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Alternative No.
Description
VOLVO/SAMSUNG
P14520822
P14520822
Volvo/Samsung Carrier Roller
EC140–EC250
P14520149
P14520149
Volvo/Samsung Carrier Roller
EC330–EC480
P14520608
P14520608
Volvo/Samsung Carrier Roller
EC160
14370174
14370174
Volvo/Samsung Carrier Roller
EC160B
14520149
14520149
Volvo/Samsung Carrier Roller
EC200
14215476
14215476
Volvo/Samsung Carrier Roller
EC230B, EC230BLC, EC280
14302211
14302211
Volvo/Samsung Carrier Roller
SE210-1,SE210LC-1
103060070
1030-60070
Volvo/Samsung Carrier Roller
MX8-2,SE210-2,MX222
103050030
1030-50030
Volvo/Samsung Carrier Roller
EC210, EC240,MX225, MX255,SE210-3
118100020
1181-00020
Volvo/Samsung Carrier Roller
EC150, EC160, EC180, EC200, EC210, EC220, EC235, EC240, EC250, FC2121
14528559
14528559
Volvo/Samsung Carrier Roller
EC150, EC160, EC180, EC200, EC210, EC220, EC235, EC240, EC250, FC2121
14545571
14545571
Volvo/Samsung Carrier Roller
EC210, EC240,MX225, MX255,SE210-3
UH082W0B
UH082W0B
Volvo/Samsung Carrier Roller
EC230,EC280
14260871
14260871
Volvo/Samsung Carrier Roller
