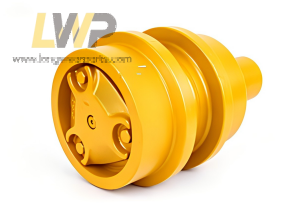

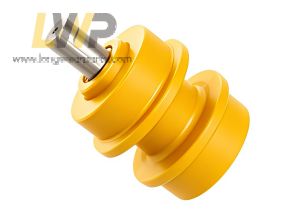

Products information 1)Idler roller body material: 50Mn/40Mn2/42CrMo 2)Surface hardness: HRC48-55 ; 3)Shaft material: 40Cr/#45Carbon steel 4)Bearing/Bushing material: GCr15 5)Package: packed in strong pallets 6)Application: Used to support the track, prevent sagging, and maintain tension and linear guidance.
Long wear parts@ supply high quality Volvo Carrier Roller,Volvo Upper Roller,Volvo Top Roller, Volvo Rodillos Superiores,Volvo Rullo Superiore.
1) Dimensions
Outer Diameter: 200–450 mm (Varies by model)
Wheel Width: 120–220 mm
Axle Diameter: 50–90 mm
Center Distance: Customized to track frame specifications
2) Load Capacity
Small (6–15 tons): 3–8 tons per wheel
Medium (20–30 tons): 10–18 tons per wheel
Large (Over 40 tons): 20–35 tons per wheel
3) Service Life & Operating Conditions
Heavy-Duty Mining: ≥ 3,000 hours
Earthmoving: ≥ 5,000 hours
Operating Temperature: -30°C ~ 100°C
Long wear parts@ Upper Roller/Top Roller/Rodillos Superiores are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Alternative No.
Description
MX3, MX3A
108101380
1081-01380
Volvo/Samsung Carrier Roller
MX3, MX3A
77212437500
772124-37500
Volvo/Samsung Carrier Roller
EC55, MX55
118100440
1181-00440
Volvo/Samsung Carrier Roller
SE130,MX132,MX132LCM,
SE130LC-2,SE130LCM-2,MX6LC,
108101670
1081-01670
Volvo/Samsung Carrier Roller
EC140, SE130LC-3, MX135
118101100
1181-01100
Volvo/Samsung Carrier Roller
EC140, SE130LC-3, MX135
14532433
14532433
Volvo/Samsung Carrier Roller
PC200-5
103010041
1030-10041
Volvo/Samsung Carrier Roller
MX222, MX222LC, MX225, MX225LC, MX8-2, MXLC-2
10305003
1030-5003
Volvo/Samsung Carrier Roller
EC235 & EC290
A4030000M00
A4030000M00
Volvo/Samsung Carrier Roller
EC330–EC480
SA108101820
SA1081-01820
Volvo/Samsung Carrier Roller
EC330–EC480
SA108101950
SA1081-01950
Volvo/Samsung Carrier Roller
SE210-3 and SE235-3
SA118100020
SA1181-00020
Volvo/Samsung Carrier Roller
MX10, MX292, MX295
SA118100781
SA1181-00781
Volvo/Samsung Carrier Roller
VOLVO/SAMSUNG
SA308101010
SA3081-01010
Volvo/Samsung Carrier Roller
