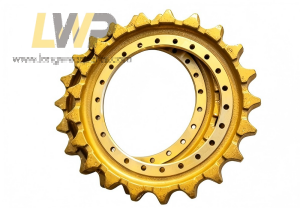

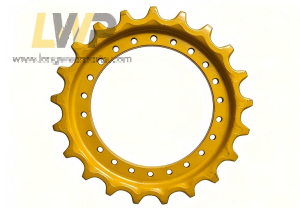

Volvo Track Sprocket 1030-20030/1181-00420/1181-00421

Products information
1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo;
2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62;
3)Tooth Hardening Depth: 18–23mm;
4)Tensile Strength: ≥800MPa;
5)Structure Type: Single Piece/Split Rim ;
6)Pitch Tolerance:±0.1~0.5mm;
7)Package: packed in strong pallets;
8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

Product Description:

Long wear parts@ supply high quality Volvo excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.

Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC5062 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.

If you choose us , you can:

1)  Reduce your machine downtime with ultra wear-resistant drive sprockets

2)  Smooth meshing design lowers wear of track chains and travel reducers

3)  Factory direct price without middlemen, maximize profit for your business

4Large inventory ensures short lead time for urgent orders

5)  Professional technical team provides parameter matching support anytime.

Long wear parts@ drive sprocket/drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.


Model Part number Alternative No. Description
SE25,MX3 103020030 1030-20030 Volvo Drive Sprocket
MX55 118100420 1181-00420 Volvo Drive Sprocket
EC55, MX55A 118100421 1181-00421 Volvo Drive Sprocket
EC55, MX55A 14507728 14507728 Volvo Drive Sprocket
SE130, SE130-2,MX132 108103860 1081-03860 Volvo Drive Sprocket
SE130LCM-2 108104170 1081-04170 Volvo Drive Sprocket
SE130LC-2,MX132 108101021 1081-01021 Volvo Drive Sprocket
EC140, MX135,SE130-3,SE130LCM-3 118101190 1181-01190 Volvo Track Sprocket
EC140, MX135,SE130-3,SE130LCM-3 14532435 14532435 Volvo Track Sprocket
SE210,MX8-2 103060001 1030-60001 Volvo Track Sprocket
SE210,MX8-2 108103700 1081-03700 Volvo Track Sprocket
SE210,MX8-2 108101200 1081-01200 Volvo Track Sprocket
MX8, SE210-1 108160001 1081-60001 Volvo Track Sprocket
SE210LC-2,MX222,EC210,
EC160B,EC140LCM,SE210-3,
118100050 1181-00050 Volvo Track Sprocket
