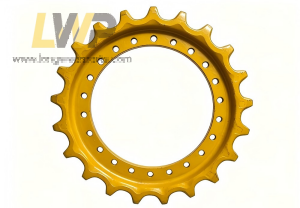

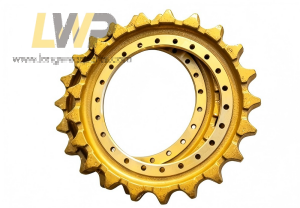

Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.
Long wear parts@ supply high quality Volvo excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC50–62 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.
If you choose us , you can:
1) Reduce your machine downtime with ultra wear-resistant drive sprockets
2) Smooth meshing design lowers wear of track chains and travel reducers
3) Factory direct price without middlemen, maximize profit for your business
4) Large inventory ensures short lead time for urgent orders
5) Professional technical team provides parameter matching support anytime.
Long wear parts@ drive sprocket/drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.
Model
Part number
Alternative No.
Description
EC290, MX295
118100681
1181-00681
Volvo Drive Sprocket
EC295, MX295,EC290LC
14532319
14532319
Volvo Drive Sprocket
EC290, MX295
14532419
14532419
Volvo Drive Sprocket
EC290, MX295
14520824
14520824
Volvo Drive Sprocket
EC360,SE350,MX352,MX14
108101850
1081-01850
Volvo Drive Sprocket
EC360,SE350,MX352,MX14
14532315
14532315
Volvo Drive Sprocket
EC360,SE350,MX352,MX14
1452069
1452069
Volvo Drive Sprocket
EC360,SE350,MX352,MX14
14604301
14604301
Volvo Track Sprocket
EC460, SE450,MX452
108102210
1081-02210
Volvo Track Sprocket
MX8-2
108100360
1081-00360
Volvo Track Sprocket
EC460, SE450,MX452
14533155
14533155
Volvo Track Sprocket
EC460, SE450,MX452
14532318
14532318
Volvo Track Sprocket
EC700
14532544
14532544
Volvo Track Sprocket
EC700
14522605
14522605
Volvo Track Sprocket
SD15P
308100010
3081-00010
Volvo Track Sprocket
