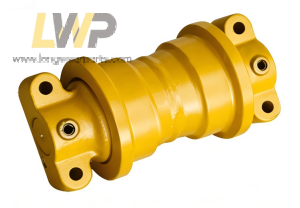

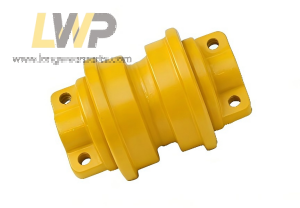

VOLVO/SAMSUNG Track Roller 1081-01580/1081-00090/1081-00060

Products information
1)Track roller body material: 40Mn2/50Mn/42CrMo
2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining    Model≥8-20mm);
3)Shaft material: 50Mn/40Cr/45#
4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm;
5)Bearing/Bushing material: GCr15
6)Package: packed in strong pallets
7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t

Product Description:

Long wear parts@ supply high quality Volvo Track Roller/Volvo Lower Roller/Volvo Bottom Roller/Volvo Rodillos Inferiores/ Volvo Rullo Inferiore. Our Track Rollers have a high hardness level of HRC52-60. They are manufactured using a through hardening system and spraying quenching system, in compliance with the stringent ISO System.

Long wear parts@ use advanced machining centres, both horizontal and vertical, to execute processes such as machining, drilling, threading and milling. This ensures the quality and precision of each component, maximising their lifespan and minimising production costs per hour.

Additionally, they feature good bronze bushings and a deep hardened wear surface. This ensures excellent wear resistance even in the most severe working conditions.

The bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Doosan/Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.

Model Part number Alternative number Description
MX3A 108103460 1081-03460 VOLVO/SAMSUNG Track Roller
MX55, EC55 118100430 1181-00430 VOLVO/SAMSUNG Track Roller
MX55, EC55 14543561 1454-3561 VOLVO/SAMSUNG Track Roller
MX132, MX135,MX6LC, SE130,EC140 108101580 1081-01580 VOLVO/SAMSUNG Track Roller
MX132, MX135,MX6LC, SE130,EC140 108103970 1081-03970 VOLVO/SAMSUNG Track Roller
EC150 14504091 1450-4091 VOLVO/SAMSUNG Track Roller
EC160 14370170 1437-0170 VOLVO/SAMSUNG Track Roller
EC200 14043991 1404-3991 VOLVO/SAMSUNG Track Roller
MX8-2,SE210,SE235, SE240,
MX222, MX225,MX255, EC210,EC240
108100090 1081-00090 VOLVO/SAMSUNG Track Roller
MX8-2,SE210,SE235, SE240,
MX222, MX225,MX255, EC210,EC240
108103680 1081-03680 VOLVO/SAMSUNG Track Roller
MX8-2,SE210,SE235, SE240,
MX222, MX225,MX255, EC210,EC240
118100010 1181-00010 VOLVO/SAMSUNG Track Roller
MX8-2,SE210,SE235, SE240,
MX222, MX225,MX255, EC210,EC240
14527314 1452-7314 VOLVO/SAMSUNG Track Roller
MX10-2,MX292,MX295, SE280,EC290 108100060 1081-00060 VOLVO/SAMSUNG Track Roller
MX10-2,MX292,MX295, SE280,EC290 108103871 1081-03871 VOLVO/SAMSUNG Track Roller
