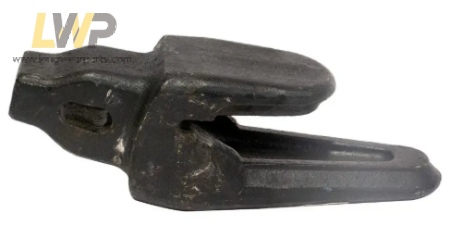

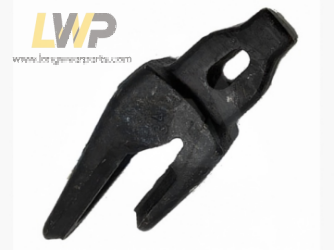

New Holland Smartfit Weld-on Adapter SF110010/SF112515/SF1040M20

Products information
1) Material: Low alloy steel
2) Surface: Standard yellow or as your request
3) Hardness: 360-420 HBW
4) Impact Strength: ≥22J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader buckets to connect replaceable, wear-resistant teeth, crucial for maximizing digging force in tough materials.

Our aftermarket replacement New Holland Smartfit Weld‑on adapters are heavy‑duty weld‑on ground‑engaging‑tool bases for the CNH New Holland & Case SmartFit hammer‑less locking tooth system, can fit medium‑small to medium‑large excavators and wheel loaders, compatible with multiple bucket lip thicknesses. Our factory adopt high‑strength low‑alloy cast steel with precision quenching‑and‑tempering heat treatment , the hardness of adapter are stable around 360‑420HB , impact strength ≥22J .

New Holland Smartfit adapters 84289869/SF110010are compatible with bucket teeth SF10SYL/84216218/84168130, mainly used in models Case CX75 ,CX80;

New Holland Smartfit adapters 84289892/SF112515are compatible with bucket teeth SF15SYL/84216210/84168135, mainly used in models Case CX130C/D – CX145C ;

New Holland Smartfit adapters 84289898/SF112520/84289899/84289901 are compatible with bucket teeth SF20SYL/84216123, mainly used in models CX160C/D,CX210C/D,CX235C;

New Holland Smartfit adapters 84365582/SF1040M20are compatible with bucket teeth SF20TV/84216124, mainly used in models Case CX160C/D,CX210C/D,CX235C;

New Holland Smartfit adapters 84254592/SF1040M20are compatible with bucket teeth SF10SYL/84216218/84168130, mainly used in models Case CX75 ,CX80;

New Holland Smartfit adapters 84289950/SF115025are compatible with bucket teeth SF25SYL/84254196, mainly used in models Case CX250C/D;

New Holland Smartfit adapters 84268728/SF120030are compatible with bucket teeth SF30RC/84089953, mainly used in models Case CX300C/D;

New Holland Smartfit adapters 84409531/SF117530are compatible with bucket teeth SF30HP/84289960, mainly used in models Case Case CX300C/D;

New Holland Smartfit adapters 84289974/SF120040are compatible with bucket teeth SF40RC/84289967/SF40HP/84289971, mainly used in models CX350C/D,CX470,CX490;

New Holland Smartfit adapters 84290044/SF125050are compatible with bucket teeth SF50RC/84290030/SF50SYL/84290034, mainly used in models Case CX470C–CX490D;

New Holland Smartfit adapters 47540797/SF125070 are compatible with bucket teeth SF70RC/47540833/SF70SYL/47540817, mainly used in models Case CX700B;

All of our New Holland bucket adapters are manufactured under ISO 9001 certified quality management systems, every adapter undergoes rigorous quality control—including material composition analysis, hardness verification, dimensional inspection to eliminate internal casting defects.

Except New Holland products , we can also supply you GET Parts & Wear parts for other brands , include Caterpillar(CAT) /Komatsu /Sany /VOLVO/ Hyundai/ Hitachi/ Liebherr/ Hensley /ESCO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco and so on .

Except Bucket Adapters, we can also supply Bucket Teeth , Pin& Retainer, Bolt&nut, chocky bar, Lip Shroud,Half Allow/Upper Wear Plate/Top Cover/ Segment/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on.

Model	Part number	Alternative number	Description
Case CX75 ,CX80	84289869	SF110010	New Holland Smartfit Weld-on Adapter
CX130C/D – CX145C SR	84289892	SF112515	New Holland Smartfit Weld-on Adapter
CX160C/D,CX210C/D,CX235C	84289898	SF112520	New Holland Smartfit Weld-on Adapter
CX160C/D,CX210C/D,CX235C	84289899		Smartfit Weld-on Adapter-Right
CX160C/D,CX210C/D,CX235C	84289901		Smartfit Weld-on Adapter-Left
CX160C/D,CX210C/D,CX235C	84365582	SF1040M20	New Holland Smartfit Weld-on Adapter
CX160C/D,CX210C/D,CX235C	84254592	SF1040M20	New Holland Smartfit Weld-on Adapter
Case CX250C/D	84289950	SF115025	New Holland Smartfit Weld-on Adapter
Case CX300C/D	84268728	SF120030	New Holland Smartfit Weld-on Adapter
Case CX300C/D	84409531	SF117530	New Holland Smartfit Weld-on Adapter
CX350C/D,CX470,CX490	84289974	SF120040	New Holland Smartfit Weld-on Adapter
CX470C – CX490D	84290044	SF125050	New Holland Smartfit Weld-on Adapter
Case CX700B	47540797	SF125070	New Holland Smartfit Weld-on Adapter
