Products information 1)Track roller body material: 40Mn2/50Mn/42CrMo 2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining Model≥8-20mm); 3)Shaft material: 50Mn/40Cr/45# 4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm; 5)Bearing/Bushing material: GCr15 6)Package: packed in strong pallets 7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t

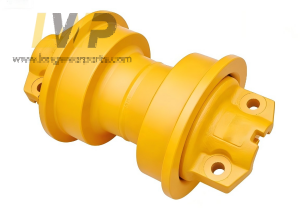

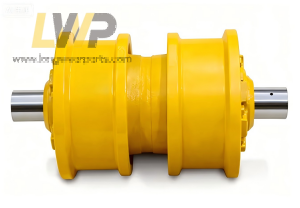

Long wear parts@ supply high quality Komatsu Track Roller/Komatsu Lower Roller/Komatsu Bottom Roller/Komatsu Rodillos Inferiores/ Komatsu Rullo Inferiore. Our Track Rollers have a high hardness level of HRC52-60. They are manufactured using a through hardening system and spraying quenching system, in compliance with the stringent ISO System.
Long wear parts@ use advanced machining centres, both horizontal and vertical, to execute processes such as machining, drilling, threading and milling. This ensures the quality and precision of each component, maximising their lifespan and minimising production costs per hour.
Additionally, they feature good bronze bushings and a deep hardened wear surface. This ensures excellent wear resistance even in the most severe working conditions.
The bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.
Model
Part number
Alternative number
Description
D75S-2, D80,D80A-5~12,D80(E,P)-12,
D85(A,E)-12,D80(A,S,P)-21
1543000405
154-30-00405
Komatsu Track Roller
D75S-2, D80,D80A-5~12,D80(E,P)-12,
D85(A,E)-12,D80(A,S,P)-21
1543000500
154-30-00500
Komatsu Track Roller
D75S-2, D80,D80A-5~12,D80(E,P)-12,
D85(A,E)-12,D80(A,S,P)-21
1543000502
154-30-00502
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1553000240
155-30-00240
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1453000320
145-30-00320
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1453000250
145-30-00250
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1553000250
155-30-00250
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1453000330
145-30-00330
Komatsu Track Roller
D75S-2~5,D80(A,E,P)-18,
D85(A,E,P)-18/21,D95S-1/2
1453000260
145-30-00260
Komatsu Track Roller
D135~D155A-1/2COLLAR
1753000760
175-30-00760
Komatsu Track Roller
D135~D155A-1/2COLLAR
1753000544
175-30-00544
Komatsu Track Roller
D135~D155A-1/2COLLAR
1763000115
176-30-00115
Komatsu Track Roller
D135~D155A-1/2COLLAR
1753000770
175-30-00770
Komatsu Track Roller
D135~D155A-1/2COLLAR
1753000554
175-30-00554
Komatsu Track Roller
D135~D155A-1/2COLLAR
1763000125
176-30-00125
Komatsu Track Roller
