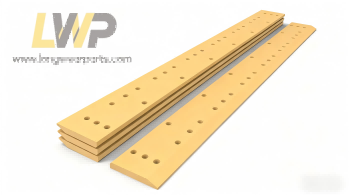

Komatsu Loader WA320 cutting edge 419-70-12221/4197012221

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Blade ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Komatsu loaders .Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).

Model Part number Alternative number Description
WA320 419-815-1211 4198151211 Edges (Bolt-on)
WA320 418-815-1221 4188151221 Edges (Bolt-on)
WA320 418-815-1220 4188151220 Edges (Bolt-on)
WA320 419-70-12221 4197012221 Base Edge
WA320 418-70-12431 4187012431 Corner Base Edge
WA320 418-70-12441 4187012441 Corner Base Edge
WA320 419-70-12164 4197012164 Corner Base Edge
WA320 419-70-12154 4197012154 Corner Base Edge
WA320 419-815-A110 419815A110 Bolt on center edge
WA320 419-815-A120 419815A120 Bolt on end edge
WA320 419-815-1111 4198151111 Bolt on center edge
WA320 419-815-1121 4198151121 Bolt on end edge
WA320 419-70-12320 4197012320 Base Edge
WA320 418-70-12440 4187012440 Corner Base Edge
WA320 418-70-12430 4187012430 Corner Base Edge
WA320 419-T65-1120 419T651120 Base Edge with segment hole
WA320 419-838-1110 4198381110 Center segment
WA320 421-838-1110 4218381110 End segment
