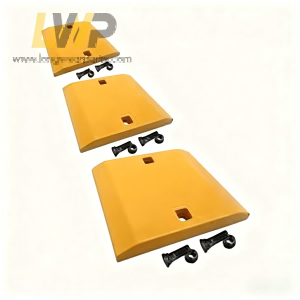

Komatsu Loader WA250 cutting edge 419-815-A120/419815A120

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

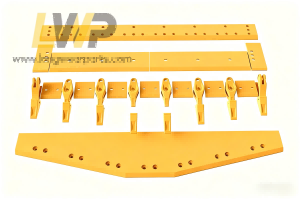

Long wear parts product line includes a comprehensive array of  Cutting edge, Segment ,Blade ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of  Komatsu loaders .Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).

Model Part number Alternative number Description
WA250 419-70-12122 4197012122 Base Edge
WA250 418-70-12441 4187012441 Corner Base Edge
WA250 418-70-12431 4187012431 Corner Base Edge
WA250 418-70-22220 4187022220 Corner Base Edge
WA250 418-829-2220 4188292220 Corner Base Edge
WA250 418-70-32620 4187032620 Corner side bar
WA250 418-815-A110 418815A110 Bolt on center edge
WA250 419-815-A120 419815A120 Bolt on end edge
WA250 419-815-1111 4198151111 Bolt on center edge
WA250 419-815-1121 4198151121 Bolt on end edge
WA250 418-815-1211 4188151211 Edges (Bolt-on)
WA250 418-815-1210 4188151210
WA250 418-815-1221 4188151221 Edges (Bolt-on)
WA250 418-815-1220 4188151220
WA250 419-T65-1121 419T651121 Base Edge  with segment hole
WA250 419-838-1110 4198381110 Center segment
WA250 421-838-1110 4218381110 End segment
WA250 418-70-12520 4187012520 Weld-on Base Edge/without holes
WA250 418-70-12440 4187012440 Weld-on Corner Edge
WA250 418-70-12430 4187012430 Weld-on Corner Edge
