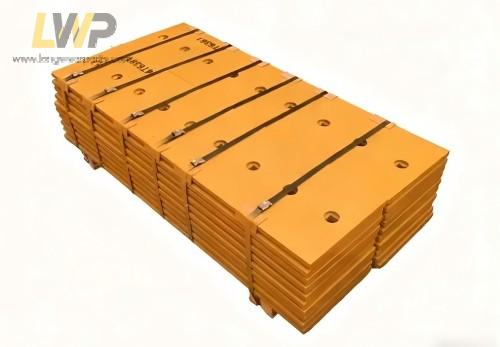

Komatsu Dozer D50/D58 cutting edge 130-70-61170/130-70-41130/130-Z20-1510

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Komatsu D50 D58 crawler dozer Cutting Edge & End Bits replacement are bolt-on GET wear parts specially designed for D50 D58 crawler dozer buckets. The Komatsu D50 D58 crawler dozers are widely used in large earthmoving works, mine overburden stripping, quarry site grading, road subgrade construction, bulk yard preparation and hard soil / rock surface clearing.

There are mainly 4 raw material options :

1. 30MnB Boron steel : use most, hardness is about HRC 440–500,can balance toughness and wear resistance well,it is ideal for sand, gravel and earth works.

2. C80 Carbon Steel : it is economical, hardness can reach HB280–360 after quenched and tempered, Suit for pure earthmoving and loose material handling, not fit rocky and high-impact sites.

3. NM400/NM450 alloy steel : own superior anti-scouring and wear resistance compared with boron steel, has greatly extending service life for long-term gravel, aggregate and construction debris working scenarios.

4. Mn13 high manganese steel : own work-hardening property, the surface will get harder under continuous impact. It fits occasional rock and hard impact. Not economical for pure earthmoving.

We can supply various bevel design cutting edges for Komatsu D50 D58 crawler dozers , including double bevel cutting edge,single bevel cutting edge, square edge and segmented cutting edge. Different bevel design fit different working site condition.We can also supply various end bit styles, including standard bolt-on end bit,heavy duty reinforced end bit,weld-on end bit and serrated end bit.

Welcome to contact us for more details ! We can supply aftermarket cutting edge and end bits for Komatsu D50 D58 crawler dozers. All of our cutting edge is made of one-piece weld-free steel with three bevel options. End bits adopt reinforced forged corners for superior resistance against side impact and abrasion. Normal production lead time is 25–35 working days upon receipt of deposit.

Model	Part number	Alternative number	Description
D50/D58	130-70-61170	1307061170	Dozer cutting edge
D50/D58	144-70-11190	1447011190	Cast end bit
D50/D58	144-70-11180	1447011180	Cast end bit
D50/D58	130-70-41130	1307041130	Dozer cutting edge
D50/D58	130-Z20-1510	130Z201510	Dozer cutting edge
D50/D58	130-920-A180	130920A180	End edge
D50/D58	13F-Z27-1510	13FZ271510	Dozer cutting edge
D50/D58	13F-Z27-1571	13FZ271571	Hot cup end bit
D50/D58	13F-Z27-1581	13FZ271581	Hot cup end bit
D50/D58	130-920-1581	1309201581	End edge
D50/D58	130-870-1820	1308701820	Dozer cutting edge
D50/D58	130-70-11145	1307011145	End edge
D50/D58	130-Z27-1510	130Z271510	Dozer cutting edge
D50/D58	14Y-71-11330	14Y7111330	Dozer level cut end bit
D50/D58	14Y-71-11340	14Y7111340	Dozer level cut end bit
D50/D58	13F-Z27-A582	13FZ27A582	Dozer level cut end bit
D50/D58	13F-Z27-A572	13FZ27A572	Dozer level cut end bit
