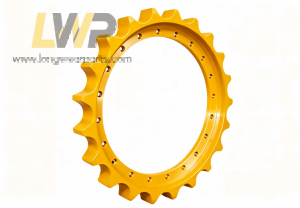

Kobelco Track Sprocket Rim 2404N427/2404N414/2404N246 China supplier

Products information
1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo;
2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62;
3)Tooth Hardening Depth: 18–23mm;
4)Tensile Strength: ≥800MPa;

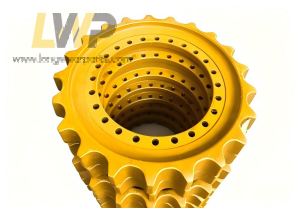

5)Structure Type: Single Piece/Split Rim ;
6)Pitch Tolerance:±0.1~0.5mm;
7)Package: packed in strong pallets;
8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

Product Description:

Long wear parts@ supply high quality Kobelco excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.

Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC5062 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.

If you choose us , you can:

1)  Reduce your machine downtime with ultra wear-resistant drive sprockets

2)  Smooth meshing design lowers wear of track chains and travel reducers

3)  Factory direct price without middlemen, maximize profit for your business

4Large inventory ensures short lead time for urgent orders

5)  Professional technical team provides parameter matching support anytime.

Long wear parts@ drive sprocket/drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.


Model Part number Description
SK125SR YY51D01006P1E Kobelco Track Sprocket
SK150LCSK160LC 2404N427 Kobelco Track Sprocket
SK200-3/SK200-5,SK220-3, SK250-4 2404N414 Kobelco Track Sprocket
SK200-1~5 2404N246 Kobelco Track Sprocket
SK200-3/SK200-5,SK220-3,SK250-4 2404N262 Kobelco Track Sprocket
SK200-6 2404N262E Kobelco Track Sprocket
SK200-8 YN51D01003P1E Kobelco Track Sprocket
SK220 LQ51D01001P Kobelco Track Sprocket
SK220-3,SK250-4 2404N264 Kobelco Track Sprocket
SK250,SK235 YN51D01002P1 Kobelco Track Sprocket
SK260-8,SK250-8,SK235-8,SK210-9 LQ51D01004P1 Kobelco Track Sprocket
