Products information 1)Track roller body material: 40Mn2/50Mn/42CrMo 2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining Model≥8-20mm); 3)Shaft material: 50Mn/40Cr/45# 4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm; 5)Bearing/Bushing material: GCr15 6)Package: packed in strong pallets 7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t

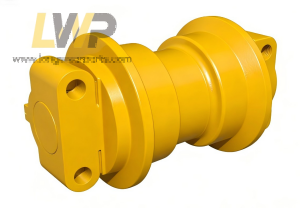

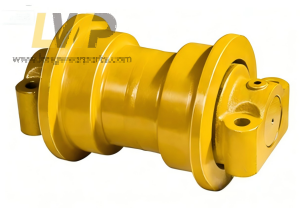

Long wear parts@ Kobelco Track Roller/Kobelco Lower Roller/Kobelco Bottom Roller/Kobelco Rodillos Inferiores/ Kobelco Rullo Inferiore own
numerous advantages :
1. High-Quality Construction: Crafted with precision using top-grade materials to ensure robustness and longevity.
2. Optimized Design: Engineered for superior performance and durability under heavy load conditions.
3. Sealed Bearings: Equipped with sealed bearings to prevent contamination, ensuring smooth operation and extending the service life.
4. Easy Installation: Designed for easy and efficient installation, reducing downtime during maintenance.
Besides , the bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce
internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/
MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.
Model
Part number
Description
SK200-2~6,SK230, SK235SR-1
YN64D00013F1
Kobelco Track Roller
SK200-2~6,SK230, SK235SR-1
24100N8009F2
Kobelco Track Roller
SK200-2~6,SK230, SK235SR-1
YN64D00019F1
Kobelco Track Roller
SK220-1~5,SK270, SK220LC
24100J11696F2
Kobelco Track Roller
SK220-1~5,SK270, SK220LC
24100J11696F3
Kobelco Track Roller
SK09-N2
24100J6186F1
Kobelco Track Roller
SK300, SK300LC-3, SK270-5, SK400
24100N3856F1
Kobelco Track Roller
SK300, SK300LC-3, SK270-5, SK400
24100N3856F3
Kobelco Track Roller
SK310-2/3
24100N7032F1
Kobelco Track Roller
SK330, SK330-6,E385B
LC64D00005F1
Kobelco Track Roller
SK400
24100J4396F2
Kobelco Track Roller
