Products information 1)Track roller body material: 40Mn2/50Mn/42CrMo 2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining Model≥8-20mm); 3)Shaft material: 50Mn/40Cr/45# 4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm; 5)Bearing/Bushing material: GCr15 6)Package: packed in strong pallets 7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t

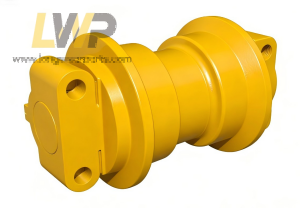

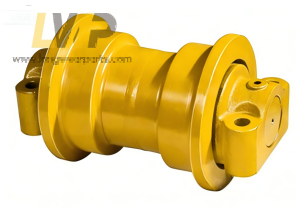

Long wear parts@ supply high quality Kobelco Track Roller/Kobelco Lower Roller/Kobelco Bottom Roller/ Rodillos Inferiores/ Kobelco Rullo Inferiore. Our Track Rollers have a high hardness level of HRC52-60. They are manufactured using a through hardening system and spraying quenching system, in compliance with the stringent ISO System.
Long wear parts@ use advanced machining centres, both horizontal and vertical, to execute processes such as machining, drilling, threading and milling. This ensures the quality and precision of each component, maximising their lifespan and minimising production costs per hour.
Additionally, they feature good bronze bushings and a deep hardened wear surface. This ensures excellent wear resistance even in the most severe working conditions.
The bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Doosan/Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.
Model
Part number
Description
SK045SR
PH64D00010F1
Kobelco Track Roller
SK60, SK03
24100N6734F1
Kobelco Track Roller
SK60, SK03
24100N6292F2
Kobelco Track Roller
SK60, SK03
LE64D00001F1
Kobelco Track Roller
K903
24100N2969F1
Kobelco Track Roller
SK04, K904C
B90N-0061F5
Kobelco Track Roller
24100N4042F2
Kobelco Track Roller
K907B, K907C,K907-2, K907D,SK07-2
24100N6400F2
Kobelco Track Roller
B90N0059F6
Kobelco Track Roller
SK200, SK100M-3/5
24100N6419F1
Kobelco Track Roller
SK200, SK100M-3/5
24100N5947F3
Kobelco Track Roller
SK200, SK100M-3/5
24100N5947F2
Kobelco Track Roller
