Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

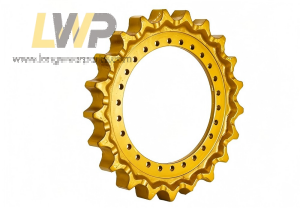

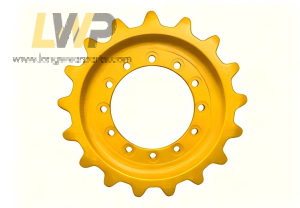

Long wear parts@ supply drive sprocket is the core power transmission component of crawler undercarriage system, mounted on final drive reducer to drive track chain for machine traveling. Fully compatible with all mainstream brand excavators from 1T mini digger to 90T mining excavator.
Our Core Advantages:
1) Premium Alloy Raw Material Adopt 35Mn2 / 40MnB / 42CrMo high-strength forged alloy steel, high tensile & impact toughness, effectively avoid tooth crack & break under heavy load, rocky & muddy harsh working sites.
2）Dual Heat Treatment Craft Overall quenching & tempering + tooth surface medium-frequency induction hardening. Surface hardness HRC 50–62, hardening depth 8–12mm. Balanced hard surface & tough core, outstanding abrasion resistance, service life 30% longer than ordinary sprockets.
3）1:1 OEM Precision Machining CNC full machining for tooth profile, pitch circle, inner spline, bolt hole circle. Strictly copy OEM drawing parameters, perfect meshing with original track chain, no track slipping, no abnormal vibration & noise, protect final drive from overload damage.
4) Two Structural Options Available
One-piece solid sprocket: Low cost, widely used for mini & medium excavators;
Split segmented rim sprocket: Only replace worn tooth ring, save maintenance cost for large mining machines;
5）Full Model Coverage & Customization Complete part numbers for CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr. Support ODM/OEM: Custom size, tooth count, painting color, logo marking per drawings & samples.
Welcome to ask Long wear parts@ excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Model
Part number
Alternative No.
Description
R160LC-7,R160LC-7A
81N510011BG
81N5-10011BG
Hyundai Sprocket
R160LC-9
81Q510010
81Q5-10010
Hyundai Sprocket
R180LC-3
81EL10080
81EL-10080
Hyundai Sprocket
R180-3,R180-7,R200LC,R200NLC,HX80
E1812001
E181-2001
Hyundai Sprocket
R180LC-3
E18120011
E181-20011
Hyundai Sprocket
R180LC-3,R180LC-7
E18120012
E181-20012
Hyundai Sprocket
R180LC-7
E18120013
E181-20013
Hyundai Sprocket
R140LCM-7,R140LC-7A
E18120013BG
E181-20013BG
Hyundai Sprocket
R200LC, HX80
82E12001
82E1-2001
Hyundai Sprocket
R210ECONO,R210-3, R210-7,
R250-3,R2200-3,R2200-7,R2500-3
81EM10010
81EM-10010
Hyundai Drive Sprocket
R210ECONO,R210-3,R210-7,
R250-3,R2200-3,R2200-7,R2500-3
81EM10011
81EM-10011
Hyundai Drive Sprocket
R210-3,R210-7,R250-3,
R250-7,R2200-7,R2500-3
81EM10012
81EM-10012
Hyundai Drive Sprocket
R210LC-7
81EM10013
81EM-10013
Hyundai Drive Sprocket
R210LC-7A,R210LC-9,R235LCR-9
81EM10013BG
81EM-10013BG
Hyundai Drive Sprocket
R210-3,R210-7,R250-3,R250-7,
R2200-7,R2500-3
81EM100123
81EM-100123
Hyundai Drive Sprocket
