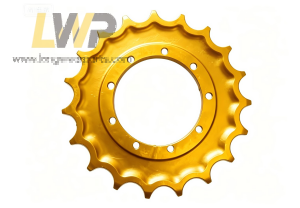

Hyundai Drive Sprocket 81MJ-10010/81M8-10010/81N3-10010

Products information
1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo;
2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62;
3)Tooth Hardening Depth: 18–23mm;
4)Tensile Strength: ≥800MPa;

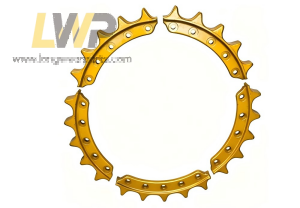

5)Structure Type: Single Piece/Split Rim ;
6)Pitch Tolerance:±0.1~0.5mm;
7)Package: packed in strong pallets;
8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

Product Description:

Long wear parts@ supply high quality Hyundai excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.

Our drive sprockets adopt forged alloy steel + dual heat treatment process, with HRC5062 tooth hardness, which greatly extends service life and lowers clients’ after-sales complaint rate. We produce both one-piece solid and split segmented sprockets, covering mini diggers to heavy mining excavators, compatible with CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr and other mainstream brands, thousands of OEM part numbers in stock.

If you choose us , you can:

1)  Reduce your machine downtime with ultra wear-resistant drive sprockets

2)  Smooth meshing design lowers wear of track chains and travel reducers

3)  Factory direct price without middlemen, maximize profit for your business

4Large inventory ensures short lead time for urgent orders

5)  Professional technical team provides parameter matching support anytime.

Long wear parts@ drive sprocket/drive wheel can be well applied to in Open-pit mining, stone quarry, highway construction, municipal engineering, demolition project, farmland excavation, landscaping, forestry operation and other heavy-duty construction sites.


Model Part number Alternative No. Description
R16-9 81MJ10010 81MJ-10010 Hyundai Sprocket
R27Z-9 81MK10011 81MK-10011 Hyundai Sprocket
R35Z-7,R35Z-7A 81MH10010 81MH-10010 Hyundai Sprocket
R35Z-9 81MH10010GG 81MH-10010GG Hyundai Sprocket
R55-3, R500,R550-3 81M552000 81M5-52000 Hyundai Sprocket
R55-3,R55-7,R550-3,R555M,
R555MVP,R555-7
81M657010 81M6-57010 Hyundai Sprocket
R55-3, R500,R550-3 81M757010 81M7-57010 Hyundai Sprocket
R55-3, R55-7,R550-3 81M810010 81M8-10010 Hyundai Drive Sprocket
R55-3, R55-7,R550-3 81M810011 81M8-10011 Hyundai Drive Sprocket
R55-3, R55-7,R550-3 81M910010 81M9-10010 Hyundai Drive Sprocket
R80-7 81N110010 81N1-10010 Hyundai Drive Sprocket
R80-7,R80-7A 81N110011 81N1-10011 Hyundai Drive Sprocket
R110-7 81N310010 81N3-10010 Hyundai Drive Sprocket
R110-7 81N310011 81N3-10011 Hyundai Drive Sprocket
R110-7,R110-7A 81N310011BG 81N3-10011BG Hyundai Drive Sprocket
