Products information 1)Idler roller body material: 50Mn/40Mn2/42CrMo 2)Surface hardness: HRC48-55 ; 3)Shaft material: 40Cr/#45Carbon steel 4)Bearing/Bushing material: GCr15 5)Package: packed in strong pallets 6)Application: Used to support the track, prevent sagging, and maintain tension and linear guidance.

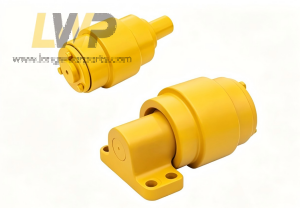

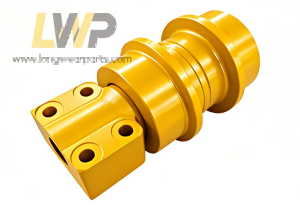

Long wear parts@ supply high quality Fiat Kobelco Carrier Roller,Fiat Kobelco Upper Roller,Fiat Kobelco Top Roller,Fiat Kobelco Rodillos Superiores,Fiat Kobelco Rullo Superiore.
1) Dimensions
Outer Diameter: 200–450 mm (Varies by model)
Wheel Width: 120–220 mm
Axle Diameter: 50–90 mm
Center Distance: Customized to track frame specifications
2) Load Capacity
Small (6–15 tons): 3–8 tons per wheel
Medium (20–30 tons): 10–18 tons per wheel
Large (Over 40 tons): 20–35 tons per wheel
3) Service Life & Operating Conditions
Heavy-Duty Mining: ≥ 3,000 hours
Earthmoving: ≥ 5,000 hours
Operating Temperature: -30°C ~ 100°C
Long wear parts@ Upper Roller/Top Roller/Rodillos Superiores are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Description
Kobelco E70–E85
72950264
Fiat Kobelco Top Roller
Kobelco E165–E265
72203512
Fiat Kobelco Top Roller
CNH machinery
72207932
Fiat Kobelco Top Roller
CNH machinery
72208802
Fiat Kobelco Top Roller
CNH FX215
72230318
Fiat Kobelco Top Roller
CNH machinery
72955683
Fiat Kobelco Top Roller
CNH machinery
72959897
Fiat Kobelco Top Roller
CNH D180
76040857
Fiat Kobelco Top Roller
CNH D180
76090557
Fiat Kobelco Top Roller
CNH D180
76090873
Fiat Kobelco Top Roller
CNH machinery
76587179
Fiat Kobelco Top Roller
