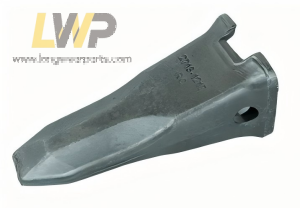

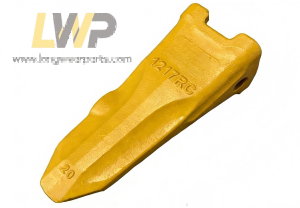

Doosan Rock Chisel Tooth 713-00057RC/2713-1219RC/2713-1236RC

Products information
1) Material: Low alloy steel / Forging
2) Surface: Standard yellow or as your request
3) Hardness: 480-520 HBW
4) Impact Strength: ≥18J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to  efficiently dig, trench, and break hard ground.

Product Description:

Long wear parts@ supply high quality Doosan GET Parts & Doosan Rock Chisel Tooth. Our Doosan Bucket Teeth are designed for improved performance and wear life and are the ideal choice for all operators looking for quality and value. We can supply you various bucket teeth for full series , so provide convenient one-stop service to improve your procurement efficiency.

Doosan rock bucket teeth 2713-1221RC/713-00057RC use bucket adapter 2713-1222, and use pin retainer 2705-1022/2114-1859

to fix;

Doosan rock bucket teeth 2713Y1217RC/K1000344RC/2713-9041RC use bucket adapter 2713Y1218 , and use pin retainer 2705-1020/2114-1848A to fix;

Doosan rock bucket teeth 2713-1219RC/713-00054RC use bucket adapters 2713-1220/K9005352, and use pin retainer 2705-1021 /2114-1849 to fix;

Doosan rock bucket teeth 27130032RC/2713-1234RC use bucket adapter 713-00033, and use pin retainer 2705-1034/2114-1931 to fix;

Doosan rock bucket teeth 2713-1236RC use bucket adapters 2713Y1237/2713Y1273, and use pin retainer 2705-1034/2114-1931 to fix;

Our Doosan rock bucket tooth/rock digging teeth/forged rock bucket teeth/casting rock bucket teeth /heavy rock bucket teeth use forged high chromium manganese alloy or low alloy steel casting technology, add alloy elements to balance hardness and toughness. Surface hardness reaches HRC 48~55, wear resistance far exceeds ordinary standard bucket teeth. Thickened cross-section at high-stress zones (shank and nose transition) provides extra material where impact and abrasion are most concentrated. Even continuous cutting broken stones and hard rock, it is hard to crack or wear out quickly. Compared with Doosan earthmoving teeth/standard bucket teeth, Doosan rock bucket teeth have thicker body, stronger anti-impact performance and longer service life in rock conditions. It solves the common problems of ordinary teeth such as easy breaking and fast abrasion when contacting stones.

Except Doosan Bucket Teeth, we can also supply Doosan Bucket Adapter,Pin& Retainer, Bolt&nut, chocky bar, Lip Shroud,Half Allow/Upper Wear Plate/Top Cover/ Segment/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on. Because of wear resistance and cost performance, our Doosan GET Wear Parts sell well in global aftermarket markets ,helping clients reduce equipment maintenance costs.

Flexible purchasing policy: support full container bulk order and small trial order, suitable for large engineering wholesalers and local repair shops respectively. Mixed loading is available for different models in one container, customers can configure hot-selling styles freely to enrich their product inventory.

Family Part number Alternative number Description
DH130·DH150 2713Y1221RC 2713-1221RC Doosan Rock Chisel Tooth
DH130·DH150 71300057RC 713-00057RC Doosan Rock Chisel Tooth
DH210·DH220·DH225 2713Y1217RC 2713-1217RC Doosan Rock Chisel Tooth
DH210·DH220·DH225 K1000344RC K1000344RC Doosan Rock Chisel Tooth
DH210·DH220·DH225 2713Y9041RC 2713-9041RC Doosan Rock Chisel Tooth
DH280.DH300 2713Y1219RC 2713-1219RC Doosan Rock Chisel Tooth
DH280.DH300 713Y00054RC 713-00054RC Doosan Rock Chisel Tooth
DH360.DH370 2713Y0032RC 713-00032RC Doosan Rock Chisel Tooth
DH360.DH370 2713Y1234RC 2713-1234RC Doosan Rock Chisel Tooth
DH420.DH500 2713Y1236RC 2713-1236RC Doosan Rock Chisel Tooth
