Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

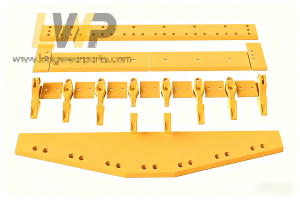

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1414847
141-4847
Base Edge With Segment Holes
1.250 x 11.130 x 113.620
30
8E5300
8E-5300
Corner 2 hole RH
2.000 x 7.996 x 9.276
2
8E5301
8E-5301
Corner 2 hole LH
2.000 x 7.996 x 9.276
2
2530062
253-0062
New Style 2 Hole Corner Protector RH
1.125 x 8.188 x 13.375
2
2530063
253-0063
New Style 2 Hole Corner Protector LH
1.125 x 8.188 x 13.375
2
1399230
139-9230
Center
1.180 x 14.170 x 50.500
3
4T8101
4T-8101
End
1.250 x 19.625 x 6.688
3
1359666
135-9666
HD Center
1.375 x 14.250 x 50.500
3
1321033
132-1033
HD End
1.375 x 19.625 x 6.688
3
1399230HAN
139-9230HAN
HA Center (Cast)
1.625 x 10.375 x 32.153
2
4T8101HA
4T-8101HA
HA End (Cast)
1.625 x 15.125 x 8.375
3
1380672
138-0672
C/IMP Center NR RH
1.125 x 11.000 x 50.500
3
1380673
138-0673
C/IMP Center NR LH
1.125 x 11.000 x 50.500
3
9W3488
9W-3488
C/IMP End NR RH
1.125 x 14.313 x 7.063
3
9W3489
9W-3489
C/IMP End NR LH
1.125 x 14.313 x 7.063
3
1324715
132-4715
Segment
1.375 x 12.000 x 10.938
2
1407601
140-7601
Wider Segment
1.180 x 14.170 x 11.500
2
