Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .

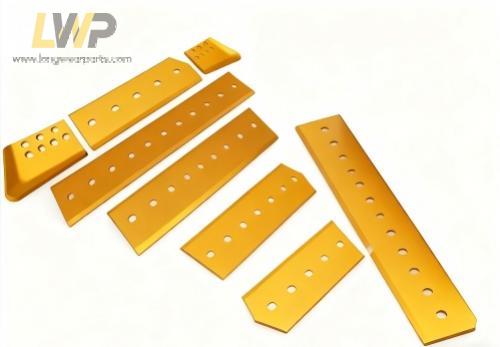

Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
5G6133
5G-6133
Base Edge With Segment Holes
0.750 x 7.500 x 84.660
26
5G3085
5G-3085
Base Edge For Bolt-on Edges or Teeth
0.750 x 7.500 x 84.660
14
5G8763
5G-8763
Base Edge With Segment Holes
0.750 x 7.500 x 89.180
24
9W8694
9W-8694
Center
0.750 x 10.000 x 56.000
3
5G2807
5G-2807
Corner 1 hole RH
0.750 x 5.375 x 7.125
1
5G2806
5G-2806
Corner 1 hole LH
0.750 x 5.375 x 7.125
1
4T2913
4T-2913
Center
0.750 x 10.000 x 51.500
3
9W8620
9W-8620
Center
0.750 x 10.000 x 60.000
4
4T2914
4T-2914
End
0.750 x 10.000 x 17.000
2
1957140
195-7140
HD Intermediate End RH
1.000 x 10.000 x 37.406
3
1957139
195-7139
HD Intermediate End LH
1.000 x 10.000 x 52.426
4
1957134
195-7134
HD Intermediate End RH
1.000 x 10.000 x 35.678
3
1957133
195-7133
HD Intermediate End LH
1.000 x 10.000 x 50.138
4
1282872
128-2872
Center Segment
0.750 x 8.000 x 12.750
2
1282873
128-2873
Segment
0.750 x 8.000 x 10.375
2
7T8935
7T-8935
Wider Segment
0.750 x 10.000 x 10.375
2
9W9640
9W-9640
Wider Segment
0.750 x 10.000 x 12.750
2
9V6572
9V-6572
Base Edge With Segment Holes
1.000 x 9.650 x 93.310
28
5V4670
5V-4670
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.625 x 93.500
16
4E0659
4E-0659
Base Edge With Segment Holes
1.000 x 9.650 x 99.350
28
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
New Style 2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
New Style 2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
