Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

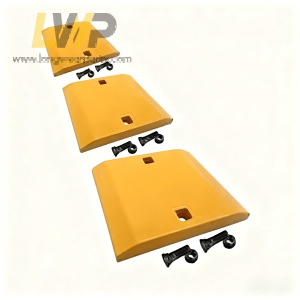

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1957137
195-7137
HD Center
1.000 x 10.000 x 47.120
4
4E2483
4E-2483
Base Edge Without Holes
1.000 x 10.000 x 102.100
4V8285
4V-8285
Corner no holes RH
4V8286
4V-8286
Corner no holes LH
1052345
105-2345
Base Edge With Segment Holes
1.000 x 9.646 x 105.551
28
1073746
107-3746
Center
1.000 x 11.000 x 46.563
3
1073746HARR
107-3746HARR
HA Center
1.125 x 10.000 x 53.002
4
1073746HARL
107-3746HARL
HA Center
1.125 x 10.000 x 53.002
4
1386425
138-6425
HD Center
1.375 x 11.000 x 46.563
3
1386560
138-6560
HD End
1.375 x 13.563 x 6.250
2
1073298
107-3298
C/IMP Center NR RH
1.000 x 8.000 x 46.563
3
1073299
107-3299
C/IMP Center NR LH
1.000 x 8.000 x 46.563
3
4T6695
4T-6695
Segment
1.000 x 11.000 x 10.437
2
1321037
132-1037
HD Segment
1.375 x 11.000 x 10.438
2
4T6695HA
4T-6695HA
HA Segment (Cast)
1.375 x 10.875 x 10.438
2
