Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

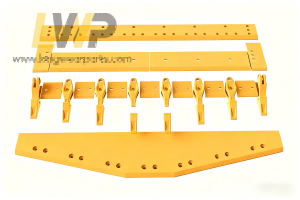

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1078570
107-8570
Spade Nose Base Edge
2.750 x 36.300 x 187.000
34
1129033
112-9033
Spade Nose Base Edge
2.750 x 32.530 x 189.907
34
1U4933
1U4-933
Base Edge Wear Plate
1.375 x 10.000 x 40.750
7
6Y0311
6Y-0311
Base Edge Wear Plate with HA segment
1.375 x 16.000 x 48.125
8
6Y0312
6Y-0312
Base Edge Wear Plate with HA segment
1.375 x 16.000 x 48.125
8
1380861
138-0861
C/IMP Segment REV
4
1380862
138-0862
C/IMP Segment RH REV
4
1380863
138-0863
C/IMP Segment LH REV
4
1151548
115-1548
Weld-On Rear Wear Plate
1.375 x 16.000 x 25.000
1151549
115-1549
Weld-On Rear Wear Plate
1.375 x 10.000 x 28.543
1327092
132-7092
Spade Nose Base Edge
2.500 x 32.530 x 189.907
38
1128996
112-8996
Corner LH/RH for 1 U0740 Protectors
1701748
170-1748
Spade Nose Base Edge
2.750 x 33.980 x 189.920
32
1743391
174-3391
Corner LH/RH for 1 U0740 Protectors
6I8364
6I-8364
Center
1.500 x 26.125 x 34.813
6
6I8365
6I-8365
Center RH
1.500 x 23.250 x 48.250
6
6I8366
6I-8366
End RH
1.500 x 23.250 x 43.500
6
6I8367
6I-8367
Center LH
1.500 x 23.250 x 48.250
6
6I8368
6I-8368
End LH
1.500 x 23.250 x 43.500
6
1277429
127-7429
HD Center
2.000 x 26.125 x 34.813
6
1277433
127-7433
HD Intermediate End RH
2.000 x 23.250 x 48.250
6
1277431
127-7431
HD End RH
2.000 x 23.250 x 43.500
6
1277432
127-7432
HD Intermediate End LH
2.000 x 23.250 x 48.250
6
1277430
127-7430
HD End LH
2.000 x 23.250 x 43.500
6
6I8364FHA
6I-8364FHA
Half Arrow Center (Fabricated)
2.000 x 18.625 x 34.812
6
6I8365FHA
6I-8365FHA
Half Arrow Center RH (Fabricated)
2.000 x 16.937 x 46.562
6
6I8366FHA
6I-8366FHA
HA End RH (Fabricated)
2.000 x 16.937 x 41.812
6
6I8367FHA
6I-8367FHA
Half Arrow Center LH (Fabricated)
2.000 x 16.937 x 46.562
6
6I8368FHA
6I-8368FHA
HA End LH (Fabricated)
2.000 x 16.937 x 41.812
6
1468966
146-8966
Spade Nose Base Edge
3.000 x x 189.921
34
1076764
107-6764
Spade Nose Base Edge
2.750 x 36.457 x 190.551
12
1345906
134-5906
Corner LH/RH for 1 U0740 Protectors
1006357
100-6357
Center Base Edge Wear Plate
1.750 x 13.000 x 35.500
6
1006356
100-6356
End Base Edge Wear Plate
1.750 x 13.000 x 45.750
4
2085325
208-5325
Spade Nose Base Edge
2085327
208-5327
Bolt on Top Plate Center
1.250 x 10.250 x 16.000
4
2085328
208-5328
Bolt on Top Plate RH
2085329
208-5329
Bolt on Top Plate LH
4T6543
4T-6543
Center Base Edge Wear Plate
4T6542
4T-6542
End Base Edge Wear Plate
1.375 x 13.000 x 23.197
4
4T6540
4T-6540
Center Base Edge Wear Plate
1.375 x 13.000 x 35.500
6
4T6539
4T-6539
End Base Edge Wear Plate
1.375 x 13.000 x 29.625
5
9V0065BASE
9V-0065BASE
Spade Nose Base Edge Without Holes
2.500 x 33.430 x 187.953
20
